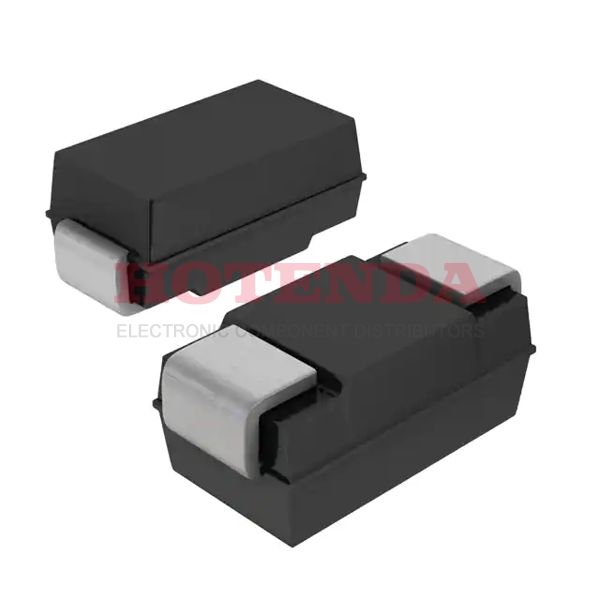

PTZTE256.2B

  • PTZTE256.2B - ZENER DIODE 6% 6.5V 1W 2 Terminations
  • PTZTE256.2B - ZENER DIODE 6% 6.5V 1W 2 Terminations

PTZTE256.2B

PTZTE256.2B

ROHM Semiconductor

ZENER DIODE 6% 6.5V 1W 2 Terminations

SOT-23

PTZTE256.2B Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Contact PlatingCopper, Silver, Tin
Mount Surface Mount
Number of Pins 2
Diode Element Material SILICON
PackagingTape & Reel (TR)
Tolerance 6%
JESD-609 Code e1
Pbfree Code yes
Part StatusNot For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Max Operating Temperature150°C
Min Operating Temperature -55°C
Additional FeatureHIGH SURGE WITHSTAND LEVEL
HTS Code8541.10.00.50
Power Rating 1W
Voltage - Rated DC 6.2V
Max Power Dissipation1W
Terminal Position DUAL
Terminal FormC BEND
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 10
Number of Elements 1
Polarity UNIDIRECTIONAL
Impedance6Ohm
Element ConfigurationSingle
Diode Type ZENER DIODE
Power Dissipation1W
Max Reverse Leakage Current 20μA
Reference Voltage6.2V
Zener Voltage 6.5V
Voltage Tol-Max 6.06%
Working Test Current 40mA
Voltage Tolerance6%
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:2968 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.074528$0.074528
500$0.054800$27.4
1000$0.045667$45.667
2000$0.041896$83.792
5000$0.039155$195.775
10000$0.036423$364.23
15000$0.035226$528.39
50000$0.034637$1731.85

PTZTE256.2B Product Details

PTZTE256.2B Overview


Voltage (Tol) is limited to 6.06%.20μA is the maximum reverse leakage current.To operate this device, set the working test voltage to 40mA.

PTZTE256.2B Features


Reverse leakage current reaches 20μA
the working test voltage to 40mA
minimal dynamic impedance is 40mA


PTZTE256.2B Applications


There are a lot of ROHM Semiconductor
PTZTE256.2B applications of zener single diodes.
