BA7808CP-E2 Overview

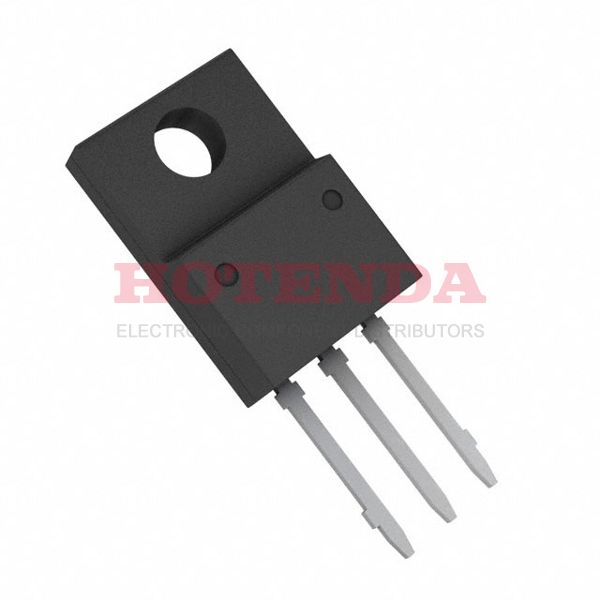

Deliveries are in Tape & Reel (TR) cases. The package is in a TO-220-3 Cropped Leads case. Basically, the voltage regulator chip is made up of 3 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Through Hole operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~85°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. The total number of pins in the regulator is 3. This IC regulator has a total of 1 outputs, which ensures a rapid, adequate performance when in use. There is a voltage dropout of 10 volts for this IC regulator. Several pins on the chip are 3-shaped. As an FYI, this IC voltage regulator has the basic part number BA78. Packing the voltage regulator IC in this way is called TAPE AND REEL packing. The maximal output current reaches 1A to meet the operating requirements.
BA7808CP-E2 Features
2V dropout voltage
TAPE AND REEL method of packing
BA7808CP-E2 Applications
There are a lot of ROHM Semiconductor
BA7808CP-E2 Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
