Name: LM1117MPX-ADJ
Brand: Texas Instruments
SKU: LM1117MPX-ADJ
Availability: InStock

new-10%

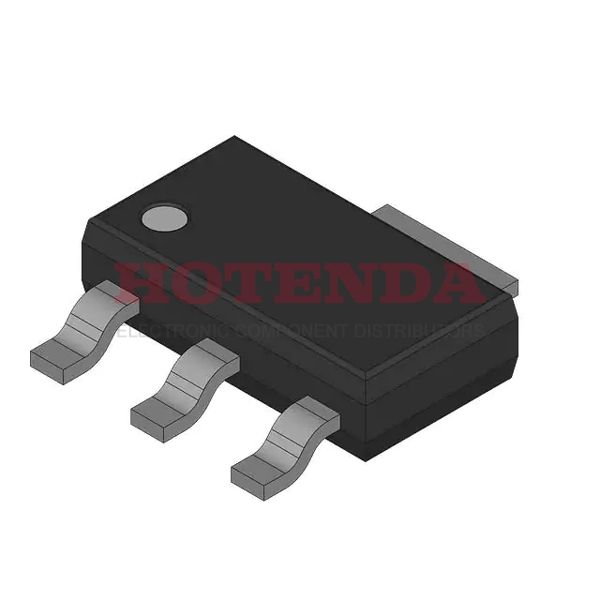

LM1117MPX-ADJ

Manufacturer part number:LM1117MPX-ADJ

Manufacturer:Texas Instruments

Description:Adjustable Lead, Tin PMIC 3 SOT-223

Case Package:SOT-23

Datasheet:LM1117MPX-ADJ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Plating	Lead, Tin
Mount	Surface Mount
Package / Case	SOT-223
Number of Pins	3
Packaging	Tape and Reel
JESD-609 Code	e0
Pbfree Code	no
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
Termination	SMD/SMT
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Max Operating Temperature	125°C
Min Operating Temperature	0°C
Subcategory	Other Regulators
Technology	BIPOLAR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Current Rating	800mA
Pin Count	3
JESD-30 Code	R-PDSO-G4
Number of Outputs	1
Output Type	Adjustable
Max Output Current	800mA
Polarity	Positive
Max Supply Voltage	13.75V
Min Supply Voltage	1.5V
Current - Output	800mA
Quiescent Current	5mA
Accuracy	1 %
Max Output Voltage	13.8V
Voltage - Output	13.8V
Min Input Voltage	2.6V
Max Input Voltage	15V
Dropout Voltage	1.2V
Dropout Voltage1-Nom	1.2V
Min Output Voltage	1.25V
Output Voltage Accuracy	1 %
Load Regulation-Max(%)	0.4%
Voltage Reference	1.262V
Height	1.6mm
Length	6.5mm
Width	3.56mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Lead Free

LM1117MPX-ADJ Product Details

The LM1117MPX-ADJ is a low dropout voltage regulator with a dropout of 1.2 V at 800 mA of load current.

For a newer drop-in alternative, see the TLV1117
For drop-in replacements in fixed output SOT-223 package configuration and improved functionality, see the TLV761
Available in 1.8 V, 2.5 V, 3.3 V, 5 V, and adjustable versions
Space-saving SOT-223 and WSON packages
Current limiting and thermal protection
Output current: 800 mA
Line regulation: 0.2% (maximum)
Load regulation: 0.4% (maximum)
