Name: NCP512SQ50T1
Brand: Rochester Electronics, LLC
SKU: NCP512SQ50T1
Price: 0.14000 USD
Availability: InStock

new-10%

NCP512SQ50T1

Manufacturer part number:NCP512SQ50T1

Manufacturer:Rochester Electronics, LLC

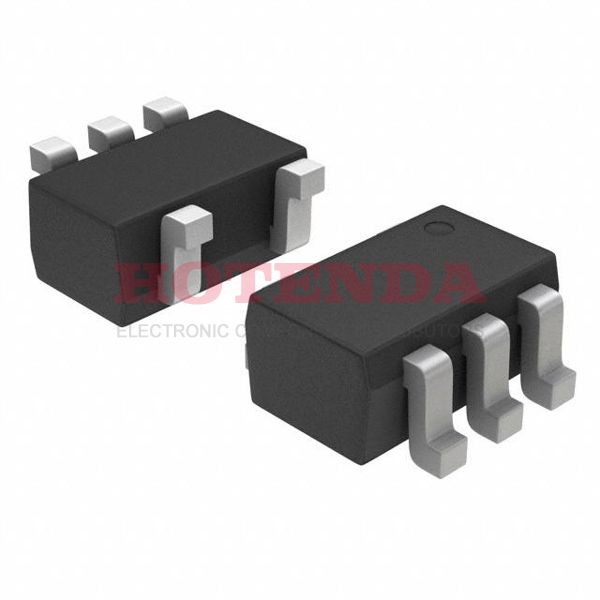

Description:0.65mm PMIC 5 5-TSSOP, SC-70-5, SOT-353

Case Package:SOT-23

Datasheet:NCP512SQ50T1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Surface Mount	YES
Packaging	Tape & Reel (TR)
JESD-609 Code	e0
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
Terminal Finish	TIN LEAD
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	0.65mm
Reach Compliance Code	unknown
Time@Peak Reflow Temperature-Max (s)	30
Pin Count	5
JESD-30 Code	R-PDSO-G5
Qualification Status	COMMERCIAL
Output Voltage 1	5V
Input Voltage (Min)	5.5V
Input Voltage (Max)	6V
Output Voltage1-Max	5.1V
Output Voltage1-Min	4.9V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.08A
Dropout Voltage1-Max	0.3V
Operating Temperature TJ-Max	125°C
Length	2mm
Height Seated (Max)	1.1mm
Width	1.25mm
RoHS Status	Non-RoHS Compliant

NCP512SQ50T1 Product Details

NCP512SQ50T1 Overview

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a 5-TSSOP, SC-70-5, SOT-353 case. On the regulater IC chip, there are a total of 5 terminations. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. A total of 5 pins can be found on the board. This device is regulated with the FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type of regulator.
