Name: MIC5232-1.8YD5-TR
Brand: Microchip Technology
SKU: MIC5232-1.8YD5-TR
Price: 0.60000 USD
Availability: InStock

new-10%

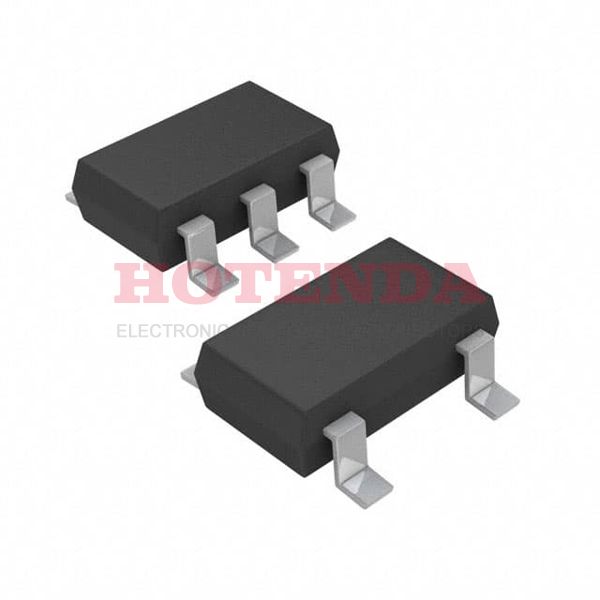

MIC5232-1.8YD5-TR

Manufacturer part number:MIC5232-1.8YD5-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.95 mm MIC5232 PMIC -- Series 5 SOT-23-5 Thin, TSOT-23-5

Case Package:SOT-23

Datasheet:MIC5232-1.8YD5-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Package / Case	SOT-23-5 Thin, TSOT-23-5
Mounting Type	Surface Mount
Mount	Surface Mount
Surface Mount	YES
Supplier Device Package	TSOT-23-5
Number of Terminals	5
Mounting Style	SMD/SMT
Supplier Package	TSOT
Input Voltage Range	2.7, 7 V
Maximum Input Voltage	7 V
Junction to Ambient	235 °C/W
Mounting	Surface Mount
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Product Status	Active
Mfr	Microchip Technology
Base Product Number	MIC5232
Package	Tape & Reel (TR)
Package Shape	RECTANGULAR
Series	--
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C~125°C
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Base Part Number	MIC5232
Pin Count	5
JESD-30 Code	R-PDSO-G5
Function	LDO
Number of Outputs	1
Voltage - Input (Max)	7V
Output Voltage	1.8V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	0.01 A
Current - Output	10mA
Control Features	Enable
Voltage - Output (Min/Fixed)	1.8V
Number of Regulators	1
Protection Features	Reverse Polarity
Current - Quiescent (Iq)	3μA
Voltage Dropout (Max)	0.3V @ 10mA
PSRR	55dB ~ 35dB (10Hz ~ 1kHz)
Seated Height-Max	1 mm
Dropout Voltage	100mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.1 V
Output Voltage1-Max	1.854 V
Output Voltage1-Min	1.746 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Output Current1-Max	0.1 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.3 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	8 V
Adjustability	FIXED
Line Regulation	0.25 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.8 V
Load Regulation	1 %
Product Category	LDO Voltage Regulators
Width	1.6 mm
Length	2.9 mm
RoHS Status	ROHS3 Compliant

MIC5232-1.8YD5-TR Product Details

MIC5232-1.8YD5-TR Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a SOT-23-5 Thin, TSOT-23-5 package. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 10mA. IC voltage regulator has a sum of 5 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. FYI, the basic part number for this IC regulator is MIC5232. This regulator IC is a typical PMIC - Power Management ICs. The regulator type for this IC regulator is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. The way of packing the voltage regulator IC is TR. It is part of the -- Series. The regulator operates with a maximum operating temperature of 125°C. At the very least, the voltage regulator IC works with a -40°C operating temperature.
