BZX84C24ET1G

  • BZX84C24ET1G - 70Ohms ±6% 50nA @ 16.8V -65°C~150°C TJ TO-236-3, SC-59, SOT-23-3
  • BZX84C24ET1G - 70Ohms ±6% 50nA @ 16.8V -65°C~150°C TJ TO-236-3, SC-59, SOT-23-3

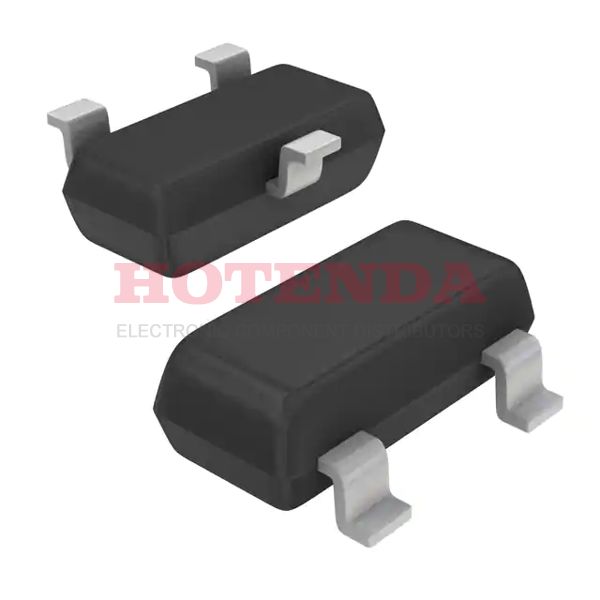

BZX84C24ET1G

BZX84C24ET1G

Rochester Electronics, LLC

70Ohms ±6% 50nA @ 16.8V -65°C~150°C TJ TO-236-3, SC-59, SOT-23-3

SOT-23

BZX84C24ET1G Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)
Operating Temperature-65°C~150°C TJ
PackagingTape & Reel (TR)
Tolerance ±6%
Part StatusObsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current - Reverse Leakage @ Vr 50nA @ 16.8V
Voltage - Forward (Vf) (Max) @ If 900mV @ 10mA
Power - Max 225mW
Impedance-Max 70Ohms
Voltage - Zener (Nom) (Vz) 24V
RoHS StatusROHS3 Compliant
In-Stock:156446 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.04000$0.04
500$0.0396$19.8
1000$0.0392$39.2
1500$0.0388$58.2
2000$0.0384$76.8
2500$0.038$95

BZX84C24ET1G Product Details

BZX84C24ET1G Overview


This electrical device requires reverse leakage current of 50nA @ 16.8V.The maximum voltage - Zener (Nom) is reduced to 24V during operation.Zener single diode reaches 900mV @ 10mA when Zener single diode is supplied wZener single diodeh the maximum voltage - Forward (Vf).

BZX84C24ET1G Features


reverse leakage current of 50nA @ 16.8V
50nA @ 16.8V is the maximum voltage (Tol)


BZX84C24ET1G Applications


There are a lot of Rochester Electronics, LLC
BZX84C24ET1G applications of zener single diodes.
