Name: JANTX1N4464US
Brand: Microsemi Corporation
SKU: JANTX1N4464US
Price: 14.49000 USD
Availability: InStock

new

JANTX1N4464US

Manufacturer part number:JANTX1N4464US

Manufacturer:Microsemi Corporation

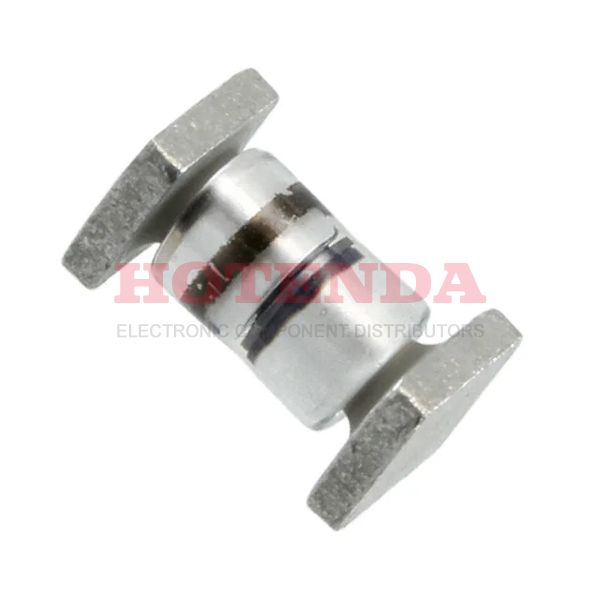

Description:ZENER DIODE 4Ohm ±5% 9.1V 300nA @ 5.46V -65°C~175°C 1.5W 2 Terminations SQ-MELF, A

Case Package:SOT-23

Datasheet:JANTX1N4464US Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time	14 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SQ-MELF, A
Number of Pins	2
Diode Element Material	SILICON
Operating Temperature	-65°C~175°C
Packaging	Bulk
Series	Military, MIL-PRF-19500/406
Published	1999
Tolerance	±5%
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Additional Feature	METALLURGICALLY BONDED
HTS Code	8541.10.00.50
Max Power Dissipation	1.5W
Terminal Position	END
Terminal Form	WRAP AROUND
Pin Count	2
Reference Standard	MIL-19500
Qualification Status	Qualified
Number of Elements	1
Polarity	UNIDIRECTIONAL
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	300nA @ 5.46V
Power Dissipation	1.5W
Voltage - Forward (Vf) (Max) @ If	1.5V @ 1A
Case Connection	ISOLATED
Max Reverse Leakage Current	300nA
Impedance-Max	4Ohm
Test Current	28mA
Reference Voltage	9.1V
Zener Voltage	9.1V
Voltage Tol-Max	5%
Voltage Tolerance	5%
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant

JANTX1N4464US Product Details

JANTX1N4464US Overview

In order to supply this electrical device, a reverse leakage current of 300nA @ 5.46V is required.This value (Tol) represents the maximum voltage that can be supplied.A reverse leakage current that reaches 300nA is the maximum.1.5V @ 1A is achieved when the maximum voltage - Forward (Vf) is applied for its operation.
