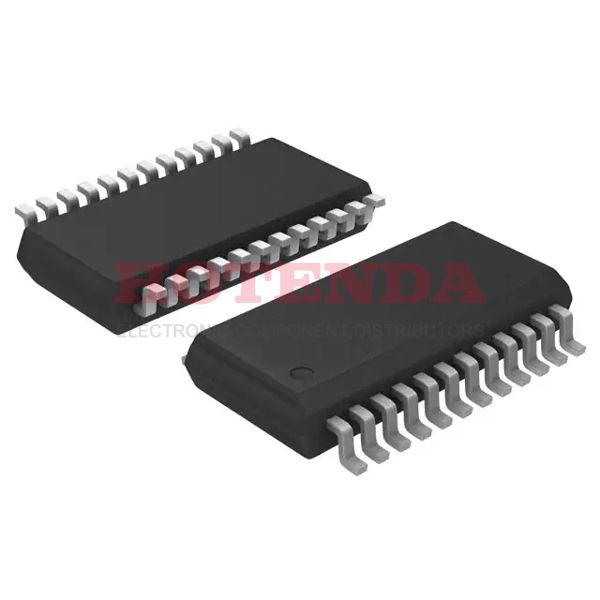

74FST3384QSR Overview
This is a relatively small item of digital switch that is included in the 24-SSOP (0.154, 3.90mm Width) in order to save space on the board.As a result, it is packaged in the way of Tape & Reel (TR).The mounting method digital switch ic uses is Surface Mount.As the analog part, the circuit uses an analog IC Bus Switch.As long as the operating temperature is -40°C~85°C, turn signal switch will not be influenced by external factors.Designers have greater flexibility using digital controlled switch when it works with 4V~5.5V voltage.With the 74FST series, the multiplexers are suitable for a diverse range of applications.There is a design for terminating 24 as part of its basic configuration.The multiplexer's system works with 5V voltage.There are 24 component pins in this turn signal switch.GULL WING is used as the point at which the conductors come to an end as part of this formula.The logic switch is a member of the CBT/FST/QS/5C/B family.In this signal multiplexer, there are 10 bits that are provided.It is recommended that the minimum supply voltage (Vsup) be kept at 4V so that unnecessary failures can be prevented.It is advisable that the maximal supply voltage (Vsup) remains at 5.5V to avoid some unnecessary failures.The resistance is 2.
74FST3384QSR Features
Supplied in the 24-SSOP (0.154, 3.90mm Width) package
74FST3384QSR Applications
There are a lot of Rochester Electronics, LLC 74FST3384QSR Signal Switches / Multiplexers / Decoders applications.
- Microprocessor instruction decoding
- Enabling different rows of memory depending on address in memory chips
- A/D converters
- To select different devices in microprocessor output
- CPU memory location identification
- Audio transmission
- Memory chips
- Textile mills
- Code converters
- Paper plants
