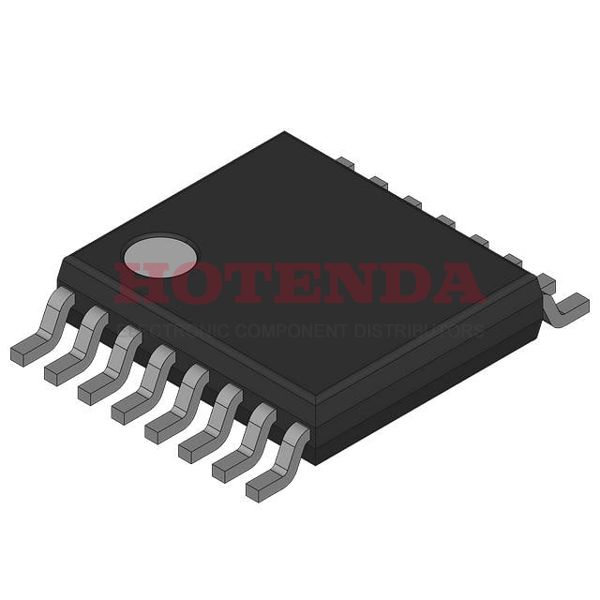

74AC157MTCX Overview
In order to conserve board space, digital switch is included in the 16-TSSOP (0.173, 4.40mm Width).Tape & Reel (TR) is the packaging method.digital switch ic uses the method of Surface Mount for mounting.Multiplexer is the analog IC that the multiplexers uses.If the operating temperature is maintained at -40°C~85°C, turn signal switch will not be susceptible to external factors.Designers have greater flexibility using digital controlled switch when it works with 2V~6V voltage.The multiplexers can be used for a wide range of applications since they are members of 74AC series.The base part number is 74AC157, so you can find its logic switch related parts using that number.Single is used as its supply type.Currently, it is configured with a 16 pin configuration.The multiplexer ic is mounted in the direction of Surface Mount.In the signal multiplexer, there are 4 bits available.This multiplexer provides 8 inputs.Voltage levels are accepted through 2 input lines of multiplexers.
74AC157MTCX Features
Supplied in the 16-TSSOP (0.173, 4.40mm Width) package
Adopting a supply type of Single
2 input lines
74AC157MTCX Applications
There are a lot of ON Semiconductor 74AC157MTCX Signal Switches / Multiplexers / Decoders applications.
- Small scale TV wall
- Data collection system
- LVDS
- Communication system
- Analog to digital conversion
- Code conversion
- Enabling different rows of memory depending on address in memory chips
- Combinational circuit
- Medium scale TV wall
- A robotic vehicle with the metal detector
