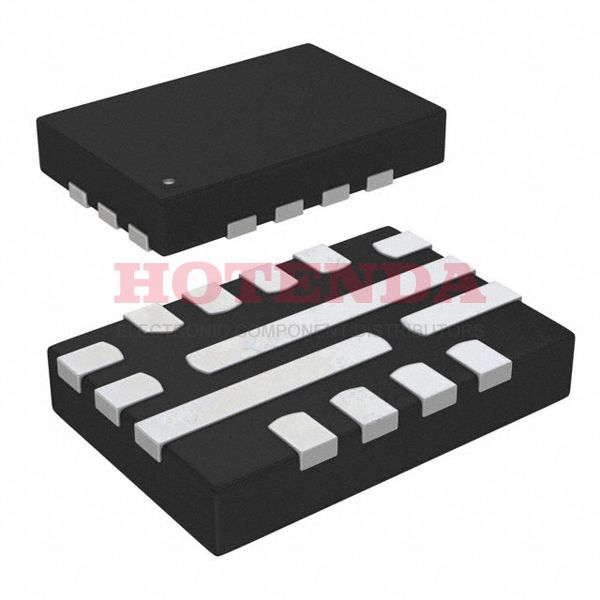

Name: RT6239ALGQUF
Brand: Richtek USA Inc.
SKU: RT6239ALGQUF
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	14-UFQFN
Number of Pins	14
Supplier Device Package	14-UQFN (2x3)
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2015
Series	ACOT™
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Function	Step-Down
Number of Outputs	1
Voltage - Input (Max)	18V
Output Type	Adjustable
Voltage - Input (Min)	4.5V
Output Configuration	Positive
Current - Output	9A
Max Output Voltage	8V
Voltage - Output (Min/Fixed)	0.7V
Topology	Buck
Min Input Voltage	4.5V
Frequency - Switching	500kHz
Max Input Voltage	18V
Synchronous Rectifier	Yes
Min Output Voltage	700mV
Voltage - Output (Max)	8V
RoHS Status	ROHS3 Compliant

RT6239ALGQUF Product Details

RT6239ALGQUF Overview

There is an optimized performance in this voltage regulator because it utilizes the Tape & Reel (TR) package. This harley voltage regulator is available in the 14-UFQFN package for the purpose of space saving. There are 1 outputs configured on the voltage regulator. Adjustable outputs are generated on the output pins of this adjusting voltage regulator. A Surface Mount mounting is required for this switching regulator. Operating at -40°C~85°C TA is the recommended temperature for adjusting voltage regulator's operation. Voltage regulator's switching frequency reaches 500kHz. Input voltage 4.5V is the dc to dc voltage regulator's minimum input voltage required for operation of the voltage regulators. It is evident from the table below that adjusting voltage regulator's output voltage (Min/Fixed) is equal to 0.7V. The output current of 9A makes dc to dc voltage regulator feature maximum design flexibility. 18V volts is DC DC switching regulator's maximum input voltage. To operate the voltage regulator 12v, 14 pins are required. Ideally this switch regulator should have an output voltage of about 700mV at the very least. On the basis of 8V's maximal output voltage, DC DC switching regulator can be operated easily. The maximum output voltage of this regulator voltage is 8V. As the name implies, this voltage regulator belongs to the ACOT? family of voltage regulators, and it is a type of switching DC-DC regulator. This voltage regulator allows stable operation due to its high maximum operating temperature 85°C. It operates with the minimum operating temperature of -40°C to ensure harley voltage regulator's reliability. It supports a dc to dc voltage regulator's minimum input voltage of 4.5V. An output voltage of 18V is maximum for this voltage regulator 12v.
