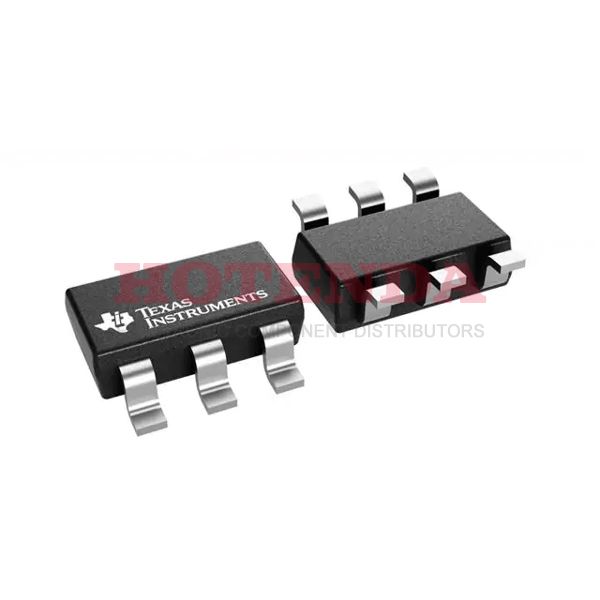

Name: LM2736YMKX
Brand: Texas Instruments
SKU: LM2736YMKX
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Number of Pins	6
Operating Temperature	-40°C~125°C TJ
Packaging	Tape & Reel (TR)
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Subcategory	Switching Regulator or Controllers
Technology	BICMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.95mm
Base Part Number	LM2736
Function	Step-Down
Number of Outputs	1
Efficiency	90 %
Voltage - Input (Max)	18V
Output Voltage	16V
Output Type	Adjustable
Max Output Current	750mA
Voltage - Input (Min)	3V
Input Voltage-Nom	5V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Voltage - Output (Min/Fixed)	1.25V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	550kHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	No
Voltage - Output (Max)	16V
Height Seated (Max)	0.9mm
Length	2.97mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

LM2736YMKX Product Details

LM2736YMKX Overview

Using the Tape & Reel (TR) package, this voltage regulator optimizes the performance of the voltage regulator 12v. In this voltage regulator, there are 6 terminations. The type of analog IC that this voltage regulator is equipped with is SWITCHING REGULATOR. For space-saving purposes, this voltage regulator is available in the SOT-23-6 Thin, TSOT-23-6 package. There are 1 outputs on DC DC switching regulator. This DC DC switching regulator generates Adjustable output on its output pins. As the name implies, this voltage regulator 12v is designed for mounting on a Surface Mount bracket. During switching regulator operation, the operating temperature should remain at -40°C~125°C TJ. This DC-DC switching regulator has a switching frequency of 550kHz. There is no dc to dc voltage regulator's minimum input voltage requirement for this regulator. In this adjusting voltage regulator, the output voltage (Min/Fixed) equates to 1.25V. Voltage regulator has an input voltage (Max) of 18V. A regulator voltage's peak reflow temperature amounts to 260 being indestructible. An input voltage of 5V is required for switching regulator operation. I would like to point out that this voltage regulator belongs to the Switching Regulator or Controllers subcategory. DC/DC regulators of this type are part of the LM2736 family of voltage regulator 12vs. The voltage DC DC switching regulator can produce is 16V volts. To operate the voltage regulator 12v, 6 pins are required. A maximum output current of 750mA A is available to meet the switching regulator operation requirements. The maximum output voltage of 16V makes DC DC switching regulator easy to operate.
