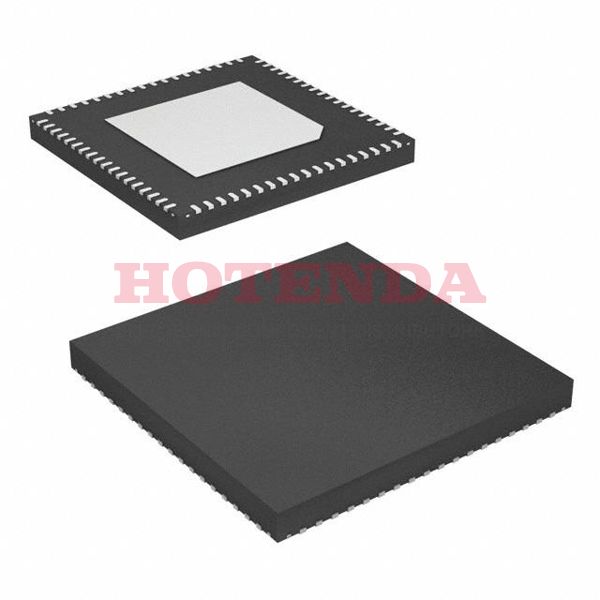

8T49N1012-998NLGI Overview
This clock IC is packaged using the Tray method. The 72-VFQFN Exposed Pad package includes this clock generator. A clock generator's input is called HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, Crystal and it is designed as the input for this clock generator. For full access to the electronic component's capabilities, 1 circuits are implemented. A clock-based RF synthesizer that provides a max frequency of 1GHz is available. With the Surface Mount, it is easy to install this electric component on the panel. This clock PLL works with a supply voltage of 2.375V~3.465V. Using the test statistics, it is estimated that the ambient temperature should be set to -40°C~85°C. A frequency synthesizer which is compatible with the HCSL, LVCMOS, LVDS, LVPECL logic levels is presented here. A Frequency Synthesizer is a classification for the electronic part in question. There are a number of electronic parts in the FemtoClock® NG series, including this one.
8T49N1012-998NLGI Features
Available in the 72-VFQFN Exposed Pad
8T49N1012-998NLGI Applications
There are a lot of Renesas Electronics America Inc.
8T49N1012-998NLGI Clock Generators applications.
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
