874S336AGLF Overview
As a clock IC, PLLs is packaged using the Tube method. Clock PLL is embedded in the 20-TSSOP (0.173, 4.40mm Width) package. There is a Clock PLL called HCSL, LVDS, LVHSTL, LVPECL, SSTL which is designed to be the input to this clock generator. To access the electronic component's full performance, 1 circuits are implemented. RF synthesizers based on this clock provide frequencies up to 204MHz maximum. Thanks to the Surface Mount, this electric component can be conveniently installed on the panel. In terms of supply voltage, RF synthesizer works with 3.135V~3.465V. The ambient temperature should be set at 0°C~70°C, which is estimated by the test statistics. It's compatible with LVDS logic levels. This electronic component is usually classified as a Clock Multiplier component. According to the base part number, its related parts can be founded.
874S336AGLF Features

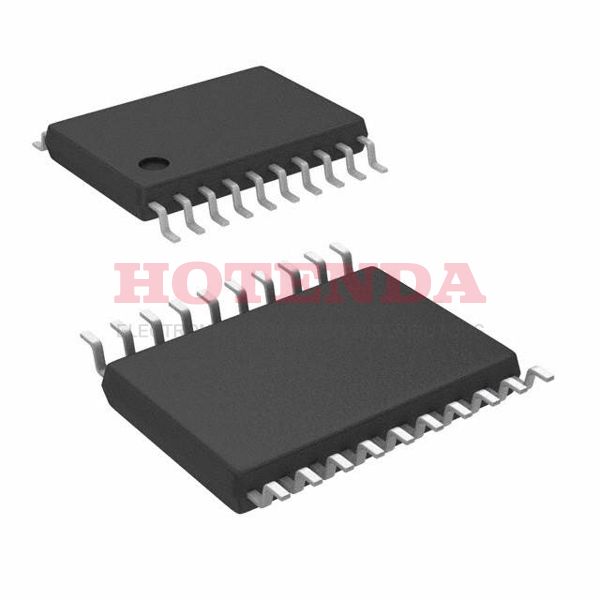

Available in the 20-TSSOP (0.173, 4.40mm Width)
874S336AGLF Applications
There are a lot of Renesas Electronics America Inc. 874S336AGLF Clock Generators applications.
- Signal analyzer
- Signal demodulation
- Satellite navigation communication
- Automatic control system test
- Televisions
- Bluetooth receivers
- Cellular/4G
- Pagers
- Coherent detection of the signal
- Simple clock clean-up circuits
