87016AYILFT Overview

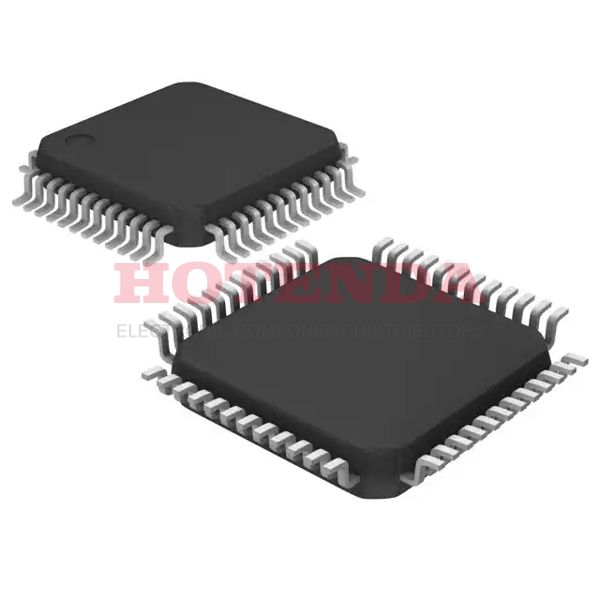

As a clock IC, PLLs is packaged using the Tape & Reel (TR) method. The 48-LQFP package contains this clock generator. The input of this clock generator is designed to be HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL, SSTL. 1 circuits are implemented to access the electronic component's full performance. An upper frequency limit of 250MHz Max can be achieved with this clock-based frequency synthesizer. With the Surface Mount, it is easy to install this electric component on the panel. There are 2.375V~3.465V different supply voltages that can be provided for this RF synthesizer. As determined by the test statistics, the ambient temperature should be set to -40°C~85°C. A frequency synthesizer which is compatible with the LVCMOS, LVTTL logic levels is presented here. An electrical part such as this one can be classified as a Clock Generator, Fanout Distribution, Multiplexer component. Related electrical parts can be found for the base part number ICS87016.
87016AYILFT Features
Available in the 48-LQFP
87016AYILFT Applications
There are a lot of Renesas Electronics America Inc. 87016AYILFT Clock Generators applications.
- Automatic control system test
- Bit synchronization
- Multi-function printers
- Picocells, femtocells and small cells
- DVD recorders
- Test equipment
- 1 Gigabit Ethernet
- Integrated phase noise in aerospace systems
- Telecommunication systems
- Camera systems
