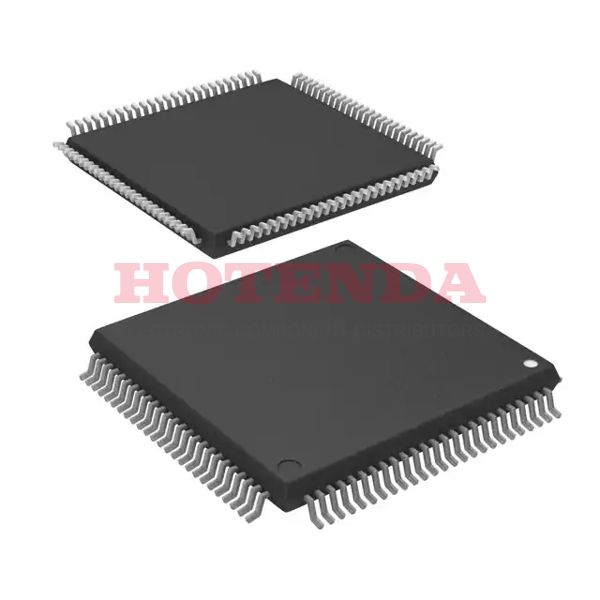

Name: R5F571MGGDFP#V0
Brand: Renesas Electronics America
SKU: R5F571MGGDFP#V0
Availability: InStock

new-10%

R5F571MGGDFP#V0

Manufacturer part number:R5F571MGGDFP#V0

Manufacturer:Renesas Electronics America

Description:2.5MB 2.5M x 8 FLASH RXv2 32-Bit Microcontroller RX71M Series 240MHz 100-LQFP

Case Package:SOT-23

Datasheet:R5F571MGGDFP#V0 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	24 Weeks
Mounting Type	Surface Mount
Package / Case	100-LQFP
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	RX71M
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Frequency	240MHz
Interface	CAN, EBI/EMI, Ethernet, I2C, MMC, SCI, SD, SPI, USB
Memory Size	2.5MB
Oscillator Type	Internal
Number of I/O	78
RAM Size	512K x 8
Voltage - Supply (Vcc/Vdd)	2.7V~3.6V
Core Processor	RXv2
Peripherals	DMA, LVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	2.5MB 2.5M x 8
Connectivity	CANbus, EBI/EMI, Ethernet, I2C, MMC/SD, QSPI, SCI, SPI, SSI, USB OTG
Data Converter	A/D 8x12b, 14x12b; D/A 1x12
EEPROM Size	64K x 8
RoHS Status	ROHS3 Compliant

R5F571MGGDFP#V0 Product Details

R5F571MGGDFP#V0 Overview

There is a 100-LQFP package available. The board has 78 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. RX71M-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 2.5MB 2.5M x 8. Powered by a RXv2 Core processor. This IC part has a memory size of 2.5MB. Performing well when operated at frequency 240MHz can be achieved.
