Name: DSPIC33EV64GM006-E/MR
Brand: Microchip Technology
SKU: DSPIC33EV64GM006-E/MR
Availability: InStock

new-10%

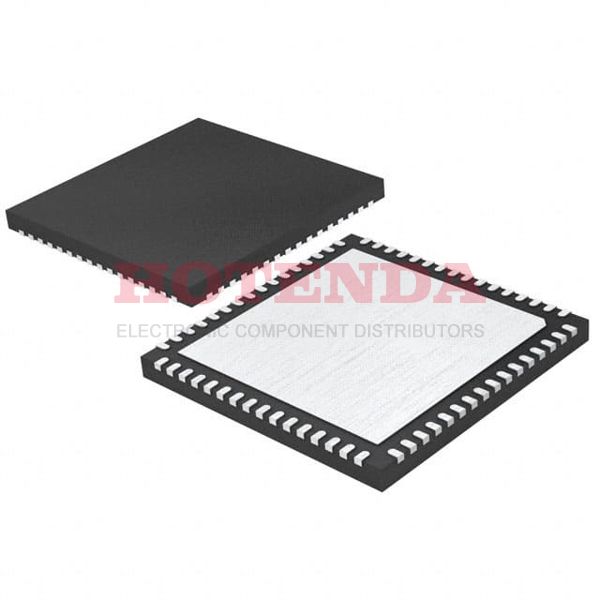

DSPIC33EV64GM006-E/MR

Manufacturer part number:DSPIC33EV64GM006-E/MR

Manufacturer:Microchip Technology

Description:64KB 22K x 24 FLASH dsPIC 16-Bit Microcontroller Automotive, AEC-Q100, dsPIC™ 33EV Series DSPIC33EV64GM0 5V 64-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:DSPIC33EV64GM006-E/MR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	64-QFN (9x9)
Number of Terminals	64
Interfaces	I2C/SPI/UART/USB
Data Converters	A/D 36x10/12b
Package	Tube
Base Product Number	DSPIC33EV64GM006
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	53
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	Automotive, AEC-Q100, dsPIC™ 33EV
Published	2016
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	64
Terminal Finish	Matte Tin (Sn) - annealed
Additional Feature	A/D CONVERTERS IS ALSO AVAILABLE IN 36-CH 10-BIT, OPERATES UPTO 60MIPS
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	DSPIC33EV64GM0
JESD-30 Code	S-PQCC-N64
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	5V
Temperature Grade	AUTOMOTIVE
Supply Voltage-Min (Vsup)	4.5V
Interface	I2C, IrDA, LIN, SPI, UART, USART
Memory Size	64kB
Oscillator Type	Internal
Number of I/O	53
Speed	60 MIPs
RAM Size	8K x 8
Voltage - Supply (Vcc/Vdd)	4.5V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT
Clock Frequency	40MHz
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	64KB 22K x 24
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART
Supply Current-Max	28.5 mA
Bit Size	16
Data Converter	A/D 36x10/12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	16b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1 mm
ROM (words)	65536
EEPROM Size	--
On Chip Program ROM Width	8
Screening Level	AEC-Q100; TS 16949
Format	FLOATING-POINT
RAM (words)	4096
RAM (bytes)	8192
ROM Programmability	FLASH
Length	9mm
Height Seated (Max)	1mm
Width	9 mm
RoHS Status	ROHS3 Compliant

DSPIC33EV64GM006-E/MR Product Details

DSPIC33EV64GM006-E/MR Overview

In a 64-VFQFN Exposed Pad package, the MCU is available. 53 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 16-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~125°C TA that is operated by this Microcontroller. Automotive, AEC-Q100, dsPIC™ 33EV series components make up this electrical component. 64KB 22K x 24 is the size of its program memory. A dsPIC Core processor is used to power the device. This device falls under the MICROCONTROLLER uPs/uCs/Peripheral ICs category. 64 is the number of terminations on the IC chip that are present. This part works in a 16-bit manner. There is a 5V volt supply output on the chip. DMA channels number YES. 64kB is the memory size of the part. The base part number DSPIC33EV64GM0 can be used to find alternatives. The device works in YES PWM channels. A 40MHz-clock frequency is used to operate it. I would like to mention a few additional features such as A/D CONVERTERS IS ALSO AVAILABLE IN 36-CH 10-BIT, OPERATES UPTO 60MIPS in order to name a few.
