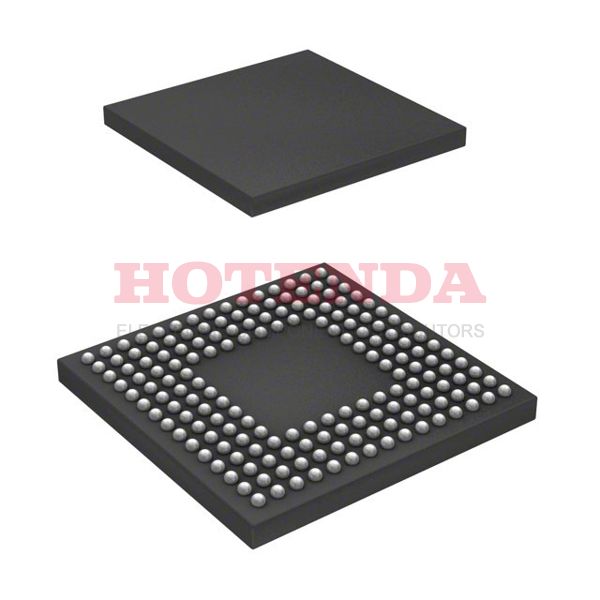

Name: R5F56217BDBG#U0
Brand: Renesas Electronics America
SKU: R5F56217BDBG#U0
Availability: InStock

new-10%

R5F56217BDBG#U0

Manufacturer part number:R5F56217BDBG#U0

Manufacturer:Renesas Electronics America

Description:384KB 384K x 8 FLASH RX 32-Bit Microcontroller RX600 Series R5F5621 176 Pin 100MHz 3V 176-LFBGA

Case Package:SOT-23

Datasheet:R5F56217BDBG#U0 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Mounting Type	Surface Mount
Package / Case	176-LFBGA
Surface Mount	YES
Number of Pins	176
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	RX600
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	176
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	3V
Terminal Pitch	0.8mm
Frequency	100MHz
Base Part Number	R5F5621
Pin Count	176
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3/3.3V
Interface	CAN, EBI/EMI, I2C, SCI, SPI, USB
Memory Size	384kB
Oscillator Type	Internal
Number of I/O	126
RAM Size	64K x 8
Voltage - Supply (Vcc/Vdd)	2.7V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	RX
Peripherals	DMA, LVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	384KB 384K x 8
Connectivity	CANbus, EBI/EMI, I2C, SCI, SPI, USB
Supply Current-Max	100mA
Bit Size	32
Data Converter	A/D 8x10/12b; D/A 2x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	YES
Number of Timers/Counters	2
Address Bus Width	24
On Chip Program ROM Width	8
Length	13mm
Height Seated (Max)	1.4mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

R5F56217BDBG#U0 Product Details

R5F56217BDBG#U0 Overview

It comes in a 176-LFBGA package. It has a number of 126I/Os. The Mounting Type of the device is Surface Mount. It is based on the 32-Bit. The It?ˉs Program Memory Type is FLASH. The device runs in -40??C~85??C TA Operating Temperature. It runs in RX600 Series.

R5F56217BDBG#U0 Features

RX600 series
Base part number of R5F5621
176 Terminals
Based on the 32-Bit
Comes with 176 Pins

R5F56217BDBG#U0 Applications

There are a lot of Renesas Electronics America R5F56217BDBG#U0 Microcontroller applications. R5F56217BDBG#U0 MCU is usually applied for Measurement and control field, Consumer electronics products, Network communication, mobile communication, Office automation equipment and computer peripherals, Industrial control Instrumentation and process control, Agriculture, transportation, Navigation control, Network application, Metering & measurement, Day to day life, Safety, Medical instruments and Automobile industry.
