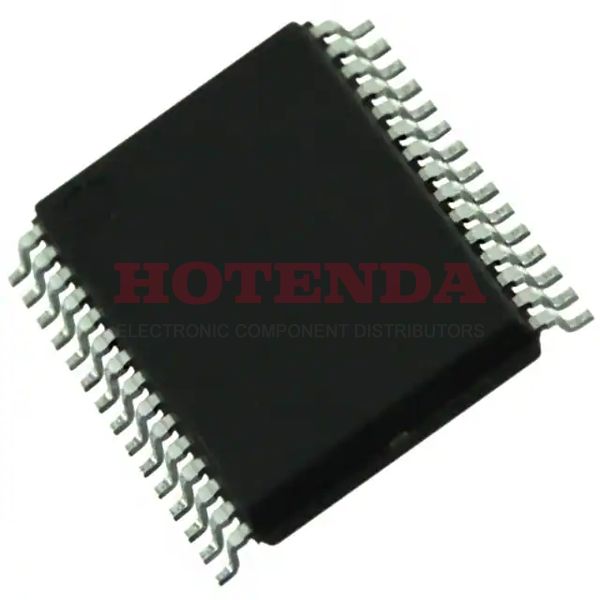

R5F103AADSP#X0 Overview
The package is in 30-LSSOP (0.240, 6.10mm Width) format. The MCU has 21 I/O ports. There is a mounting type Surface Mount associated with this Microcontroller. This Microcontroller is based on the 16-Bit core. There is a memory type of FLASH in its program memory. The temperature range that this Microcontroller operates at is -40°C~85°C TA. The electrical component that you are looking at belongs to the RL78/G12 series of components. Microcontroller has abundant program memory size of 16KB 16K x 8. The RL78 Core Processor powers the device and is one of its key features. This Microcontroller belongs to the MICROCONTROLLER uPs/uCs/peripheral ICs type. During the manufacture of the IC chip, there is a number 30 of terminations. A 16-bit operation is performed by this part. There is an output of 3V volts from the Microcontroller chip. A total of YES DMA channels are available on MCU chip. It is possible for the device to work with the motor using the PWM channel YES. It consists of 30 pins. In terms of frequency, it operates at a 20MHz clock rate. The device features 8 UART channels.
R5F103AADSP#X0 Features
30-LSSOP (0.240, 6.10mm Width) package
Mounting type of Surface Mount
R5F103AADSP#X0 Applications
There are a lot of Renesas Electronics America
R5F103AADSP#X0 Microcontroller applications.
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
- Home appliances
- Home video and audio
- Entertainment products
- Digital cameras
- DVDDVMP3 players
