Name: IPD60R600CPBTMA1
Brand: Infineon Technologies
SKU: IPD60R600CPBTMA1
Availability: InStock

new-10%

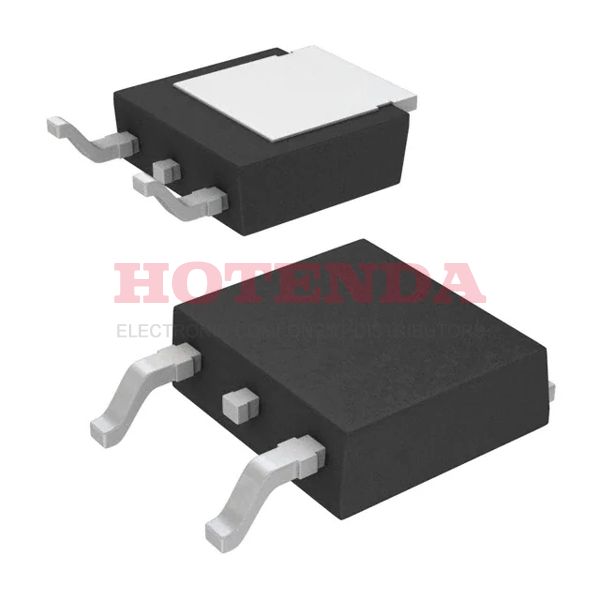

IPD60R600CPBTMA1

Manufacturer part number:IPD60R600CPBTMA1

Manufacturer:Infineon Technologies

Description:Trans MOSFET N-CH 600V 6.1A 3-Pin(2+Tab) TO-252

Case Package:SOT-23

Datasheet:IPD60R600CPBTMA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	PG-TO252-3
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2008
Series	CoolMOS™
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Technology	MOSFET (Metal Oxide)
Number of Elements	1
Power Dissipation-Max	60W Tc
Power Dissipation	60W
Turn On Delay Time	17 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	600mOhm @ 3.3A, 10V
Vgs(th) (Max) @ Id	3.5V @ 220μA
Input Capacitance (Ciss) (Max) @ Vds	550pF @ 100V
Current - Continuous Drain (Id) @ 25°C	6.1A Tc
Gate Charge (Qg) (Max) @ Vgs	27nC @ 10V
Rise Time	12ns
Drain to Source Voltage (Vdss)	600V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Fall Time (Typ)	17 ns
Turn-Off Delay Time	75 ns
Continuous Drain Current (ID)	6.1A
Gate to Source Voltage (Vgs)	20V
Input Capacitance	550pF
Rds On Max	600 mΩ
Radiation Hardening	No
RoHS Status	RoHS Compliant

About IPD60R600CPBTMA1

The IPD60R600CPBTMA1 from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features Trans MOSFET N-CH 600V 6.1A 3-Pin(2+Tab) TO-252.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IPD60R600CPBTMA1, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
