Name: 416-83-238-41-003101
Brand: Preci-Dip
SKU: 416-83-238-41-003101
Price: 4.91000 USD
Availability: InStock

new-10%

416-83-238-41-003101

Manufacturer part number:416-83-238-41-003101

Manufacturer:Preci-Dip

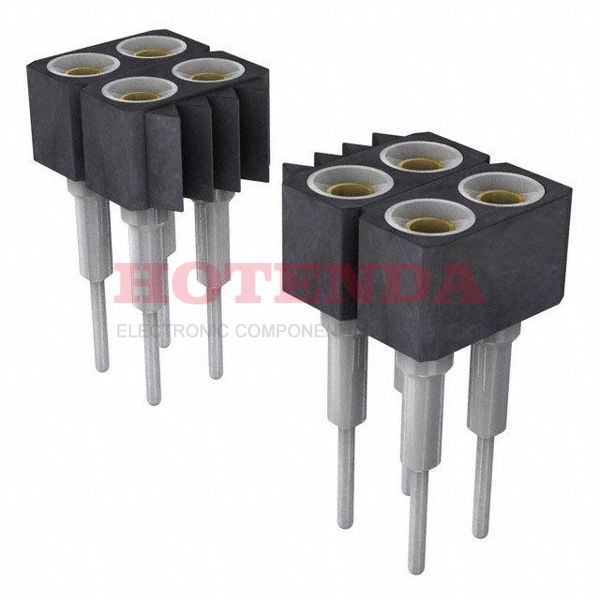

Description:2 RowsSocketSolderBeryllium CopperThrough HoleBulkGoldPolycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled38 PositionsFemale Socket

Case Package:SOT-23

Datasheet:416-83-238-41-003101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	416
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Socket
Number of Positions	38
Number of Rows	2
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Insulation Height	0.315 8.00mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	1.9 inch
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.126 3.20mm
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
Body Depth	0.315 inch
Contact Resistance	10mOhm
Insulation Resistance	10000000000Ohm
Mating Contact Pitch	0.1 inch
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	1400VAC V
Durability	500 Cycles
Plating Thickness	30μin
Contact Finish Thickness - Mating	29.5μin 0.75μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

416-83-238-41-003101 Product Details

416-83-238-41-003101 Overview

Packaging for this item is Socket.This device has a Through Hole mounting type.Packaged in a Bulk case.A product of the 416 Series, it belongs to the range of products of that series.Part Through Hole is mounted to the part.This device runs at -55°C~125°C operating temperature.
