Name: FTS-105-03-F-DV-A-P-TR
Brand: Samtec Inc.
SKU: FTS-105-03-F-DV-A-P-TR
Price: 2.57000 USD
Availability: InStock

new-10%

FTS-105-03-F-DV-A-P-TR

Manufacturer part number:FTS-105-03-F-DV-A-P-TR

Manufacturer:Samtec Inc.

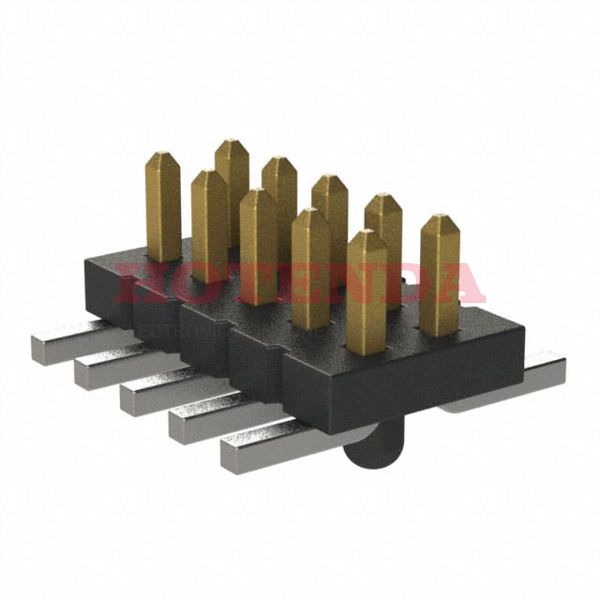

Description:FTS Series 2-Row Header, Cuttable Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Liquid Crystal Polymer (LCP) 10-Position Board to Board or Cable 0.034 0.86mm Height

Case Package:SOT-23

Datasheet:FTS-105-03-F-DV-A-P-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	FTS
Published	2015
JESD-609 Code	e3
Feature	Board Guide, Pick and Place
Part Status	Active
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Cuttable
Number of Positions	10
Number of Rows	2
Gender	Male
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.4A per Contact
Total Number of Contacts	10
Insulation Height	0.034 0.86mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.065 1.65mm
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

FTS-105-03-F-DV-A-P-TR Product Details

FTS-105-03-F-DV-A-P-TR Overview

The product is packaged in Header, Cuttable.This device is mounted in the Surface Mount position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the FTS Series.There are a number of advantages to its Board Guide, Pick and Place feature.As a result, the device runs at -55°C~125°C Operating Temperature.
