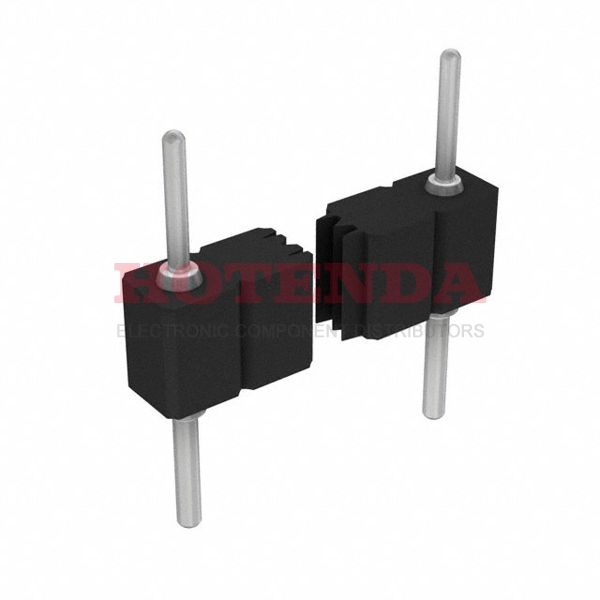

Name: 350-80-163-01-609101
Brand: Preci-Dip
SKU: 350-80-163-01-609101
Price: 4.04000 USD
Availability: InStock

new-10%

350-80-163-01-609101

Manufacturer part number:350-80-163-01-609101

Manufacturer:Preci-Dip

Description:350 Series 1-Row Header Solder Brass Bulk Through Hole Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled 32-Position Board to Board 0.110 2.79mm Height

Case Package:SOT-23

Datasheet:350-80-163-01-609101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	350
Published	2012
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	32
Number of Rows	1
Voltage - Rated	150VDC
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Type	Male Pin
Current Rating (Amps)	3A
Terminal Pitch	5.08mm
Insulation Height	0.110 2.79mm
Style	Board to Board
Number of Positions Loaded	All
Reach Compliance Code	unknown
Pitch - Mating	0.200 5.08mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Contact Length - Post	0.164 4.17mm
Shrouding	Unshrouded
Number Of PCB Rows	1
Contact Length - Mating	0.156 3.96mm
PCB Contact Pattern	RECTANGULAR
Overall Contact Length	0.477 12.12mm
Mating Contact Pitch	0.2 inch
Durability	500 Cycles
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

350-80-163-01-609101 Product Details

350-80-163-01-609101 Overview

Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the 350 Series.There is a mounting hole at Through Hole.Devices operate at -55°C~125°C operating temperatures.
