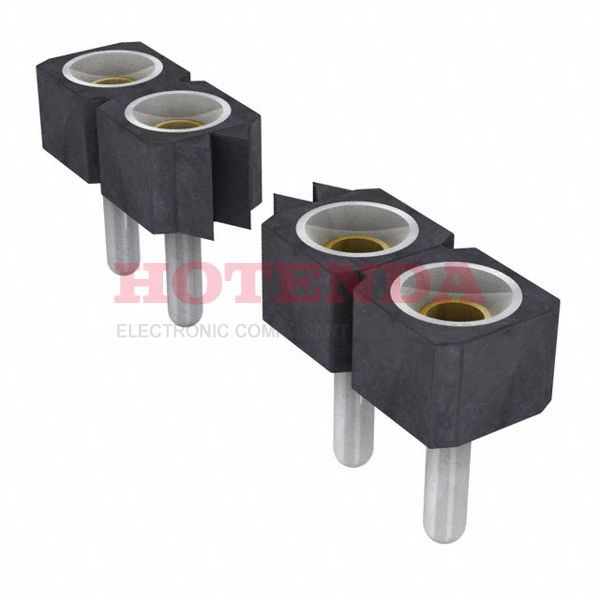

Name: 315-83-145-41-003101
Brand: Preci-Dip
SKU: 315-83-145-41-003101
Price: 4.36000 USD
Availability: InStock

new-10%

315-83-145-41-003101

Manufacturer part number:315-83-145-41-003101

Manufacturer:Preci-Dip

Description:1 RowsSocketSolderBeryllium CopperThrough HoleBulkGoldPolycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled45 PositionsFemale Socket

Case Package:SOT-23

Datasheet:315-83-145-41-003101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	315
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Socket
Number of Positions	45
Number of Rows	1
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	1A
Terminal Pitch	2.54mm
Insulation Height	0.095 2.41mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	4.5 inch
Contact Length - Post	0.095 2.41mm
Number Of PCB Rows	1
Contact Finish - Post	Tin
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Body Depth	0.095 inch
Polarization Key	POLARIZED HOUSING
Durability	500 Cycles
Plating Thickness	30μin
Contact Finish Thickness - Mating	29.5μin 0.75μm
Length - Termination	0.095 inch
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

315-83-145-41-003101 Product Details

315-83-145-41-003101 Overview

Packaging is Socket.Through Hole is the mount type.Packaged in a Bulk case.As a product of the 315 Series, it can be found in this category.Additionally, there are other features such as LOW PROFILE.There is a mounting hole at Through Hole.As a result, the device runs at -55°C~125°C Operating Temperature.
