Name: 310-83-145-41-105101
Brand: Preci-Dip
SKU: 310-83-145-41-105101
Price: 6.50000 USD
Availability: InStock

new-10%

310-83-145-41-105101

Manufacturer part number:310-83-145-41-105101

Manufacturer:Preci-Dip

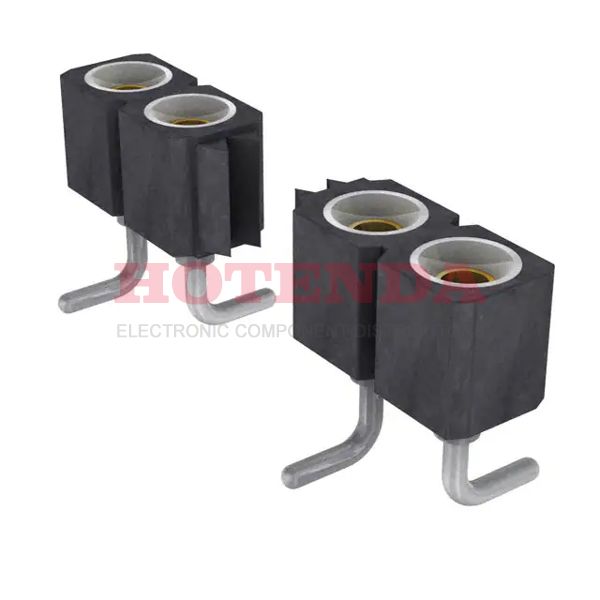

Description:1 Rows Socket Solder Beryllium Copper Surface Mount Bulk Gold Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled 45 Positions Female Socket

Case Package:SOT-23

Datasheet:310-83-145-41-105101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Beryllium Copper
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2012
Series	310
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Socket
Number of Positions	45
Number of Rows	1
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3A
Total Number of Contacts	45
Terminal Pitch	2.54mm
Insulation Height	0.220 5.60mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	4.5 inch
Number Of PCB Rows	2
Contact Finish - Post	Tin
PCB Contact Pattern	STAGGERED
UL Flammability Code	94V-0
Body Depth	0.22 inch
Polarization Key	POLARIZED HOUSING
Durability	500 Cycles
Plating Thickness	30μin
Contact Finish Thickness - Mating	29.5μin 0.75μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

310-83-145-41-105101 Product Details

310-83-145-41-105101 Overview

A Socket package is included with it.Its mounting type is Surface Mount.Packaging is performed using a Bulk case.It is part of the 310 Series of products.Surface Mount mounts the part.There is no operating temperature for the device.
