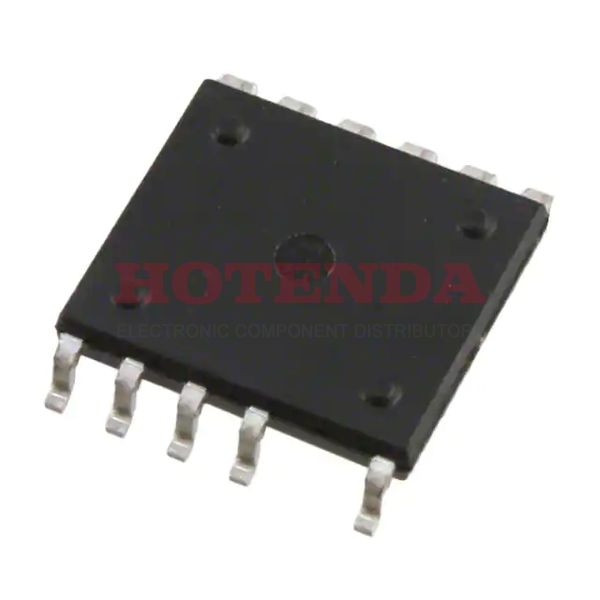

TOP271KG Overview
12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad is the package in which the ac to dc converter is embedded.The AC/DC power converter Tube is available for this product.There is a mounting point for this AC/DC converter in the way of Surface Mount .Ideally, the ac dc converter should be operated at a temperature of -40°C~150°C TJ degrees Celsius.A ANALOG CIRCUIT analog integrated circuit is used in this AC DC converter.The switching frequency reaches 66kHz 132kHz .Approximately 12 pins are present on the ac/dc converter.It belongs to a manufacturer family of TOPSwitch?-JX .There are 1 outputs to be processed.We have set the output current to 11.1A .Here is the standard for REACH SVHC : No SVHC .Under 265V , it is possible to power the AC to DC converter's input voltage.The output power of a coverter generates 66W .If the input voltage is less than 85V V, the AC to DC inverter can be used.This converter requires a minimum supply voltage of 85V volts.It is possible to supply 265V voltage across the converter.The AC to DC power converter's input voltage (AC) should be below 265V .
TOP271KG Features
Packaged with 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad
Switching Frequency at 66kHz 132kHz
With 12 pins
Output Current at 11.1A
TOP271KG Applications
There are a lot of Power Integrations TOP271KG AC DC Converters applications.
- Adapters for Handheld Electronics
- USB type-c v1.2 chargers with optional VDM
- Laptops and personal digital assistants
- AC/DC LED Driver applications
- Standby power supplies for TV
- AC/DC Adaptors/Chargers for Cordless Phone
- Industrial controls
- Laptops
- Wall switches
- Low-Voltage I/O System Power
