Name: TOP265KG
Brand: Power Integrations
SKU: TOP265KG
Availability: InStock

new-10%

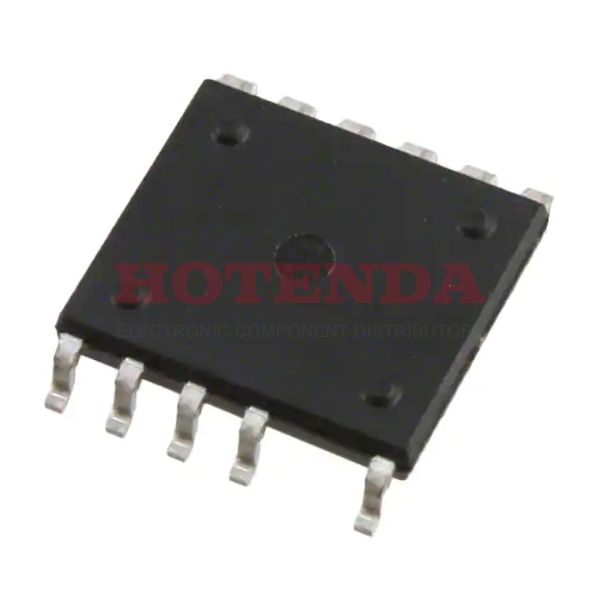

TOP265KG

Manufacturer part number:TOP265KG

Manufacturer:Power Integrations

Description:12 Pin AC to DC power converterTOPSwitch?-JX Series 1 Outputs66kHz 132kHz Min 85V VMax 265V V

Case Package:SOT-23

Datasheet:TOP265KG Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mounting Type	Surface Mount
Package / Case	12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad
Number of Pins	12
Operating Temperature	-40°C~150°C TJ
Packaging	Tube
Published	2011
Series	TOPSwitch®-JX
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Terminal Finish	MATTE TIN
Power Rating	53W
Max Power Dissipation	34W
Technology	CMOS
Peak Reflow Temperature (Cel)	260
Number of Functions	1
[email protected] Reflow Temperature-Max (s)	40
Number of Outputs	1
Analog IC - Other Type	ANALOG CIRCUIT
Output Current	2.72A
Output Power	34W
Control Features	Frequency Control
Topology	Flyback
Min Input Voltage	85V
Frequency - Switching	66kHz 132kHz
Max Input Voltage	265V
Internal Switch(s)	Yes
Fault Protection	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Max Duty Cycle	83 %
Max Supply Voltage (AC)	265V
Duty Cycle	78%
Output Isolation	Isolated
Voltage - Breakdown	725V
Min Input Voltage (AC)	85V
Max Input Voltage (AC)	265V
Min Supply Voltage (AC)	85V
Height Seated (Max)	2.49mm
Width	8.89mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant

TOP265KG Product Details

TOP265KG Overview

A ac to dc converter of the package 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad contains the ac to dc converter.There is a AC/DC power converter of Tube available.Surface Mount is mounted in the way of this AC/DC converter.The ac dc converter should be operated at a temperature of -40°C~150°C TJ °C to deliver its optimal performance.Analog IC type ANALOG CIRCUIT is utilized in this AC DC converter.There is 66kHz 132kHz switching frequency.A ac/dc converter with 12 pins is available.This AC to DC converter belongs to the TOPSwitch?-JX manufacturer family.In this AC to DC transformer, there are 1 outputs to run.We are setting the output current to 2.72A .You can read the standard of REACH SVHC : No SVHC .Input voltages under 265V can be used to power the AC to DC converter.In the AC to DC transformer of a coverter, the output power generated is 34W .The AC to DC inverter may be operated with an input voltage less than 85V volts.Across the converter, the minimum supply voltage is 85V .It is possible to supply 265V voltage across the converter.It is recommended to keep the voltage (AC) that can be applied to the AC to DC power converter below 265V .
