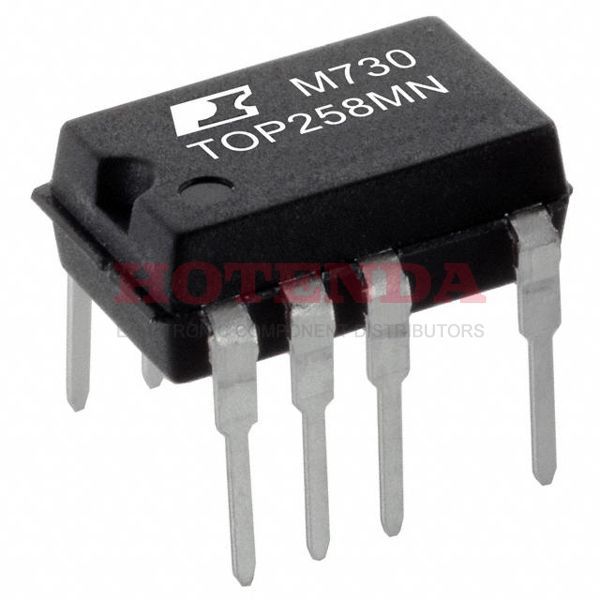

TOP258MN Overview
The ac to dc converter is embedded in 10-SDIP (0.300, 7.62mm), 9 Leads package.In Tube AC/DC power converter, it is available.It is mounted in the way of Through Hole .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~150°C TJ °C.This AC DC converter employs ANALOG CIRCUIT analog IC type.When the switching frequency reaches 66kHz , the process is complete.As a result, it has had 9 terminations.In this ac/dc converter, there are 9 pins.Suitable mounting is provided by Through Hole .This AC to DC converter belongs to the TOPSwitch?-HX manufacturer family.The following ac to dc conversions are contained in Switching Regulator or Controllers .We are setting the output current to 6.88A .The output voltage of the AC/DC converter is 700V .In the AC to DC transformer of a coverter, the output power is 48W .The AC to DC power supply is capable of operating with a minimum supply voltage of -300mV volts.
TOP258MN Features
Packaged with 10-SDIP (0.300, 7.62mm), 9 Leads
Switching Frequency at 66kHz
With 9 pins
Output Current at 6.88A
TOP258MN Applications
There are a lot of Power Integrations TOP258MN AC DC Converters applications.
- Digital cameras
- DVD players
- Battery chargers for smart phones
- AC?DC USB chargers for Cell Phones
- Portable Apparatus
- Open Frame Switching Power Supply
- Replaces linear transformers
- Automotive Infotainment
- AC-DC Output Power Conversion Applications
- Standby power supplies for TV
