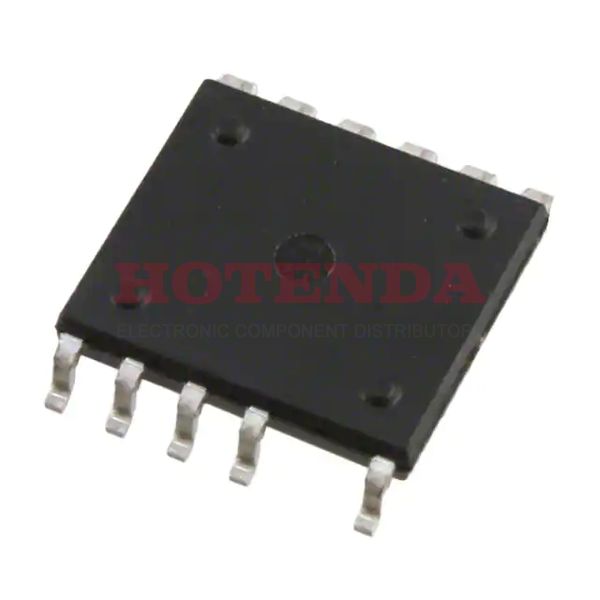

TOP264KG Overview
There is a ac to dc converter embedded in package 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad .The ac dc converter is available in Tube case.There is a mounting point for this AC/DC converter in the way of Surface Mount .The ac dc converter should be operated at a temperature of -40°C~150°C TJ °C to deliver its optimal performance.The AC DC converter utilizes a type ANALOG CIRCUIT analog IC.As soon as the switching frequency reaches 66kHz 132kHz , the circuit is closed.In this ac/dc converter, there are 12 pins.This AC to DC converter belongs to the TOPSwitch?-JX manufacturer family.The number of outputs to run is 1 .It has been set to 2.08A for the output current.It is possible to read the REACH SVHC standard at: No SVHC .It is available to power the AC to DC converter input voltage under 265V .There is 30W output power generated by a coverter.It is possible to operate the AC to DC inverter with an input voltage that is less than 85V V.There is a minimum supply voltage of 85V across the converter.Across the converter, a maximum supply voltage of 265V may be applied.The AC to DC power converter's input voltage (AC) should be below 265V .
TOP264KG Features
Packaged with 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad
Switching Frequency at 66kHz 132kHz
With 12 pins
Output Current at 2.08A
TOP264KG Applications
There are a lot of Power Integrations TOP264KG AC DC Converters applications.
- Open Frame Switching Power Supply
- Battery chargers for mobile devices with touchpad display
- Power Adaptors
- Humidifier
- Z-Wave
- Automotive Infotainment
- Power tools fast chargers with trickle and on/off
- Replacements for bulky plug-in transformers
- Switching AC-DC Charger
- Standby Power Supply
