TOP234P Overview

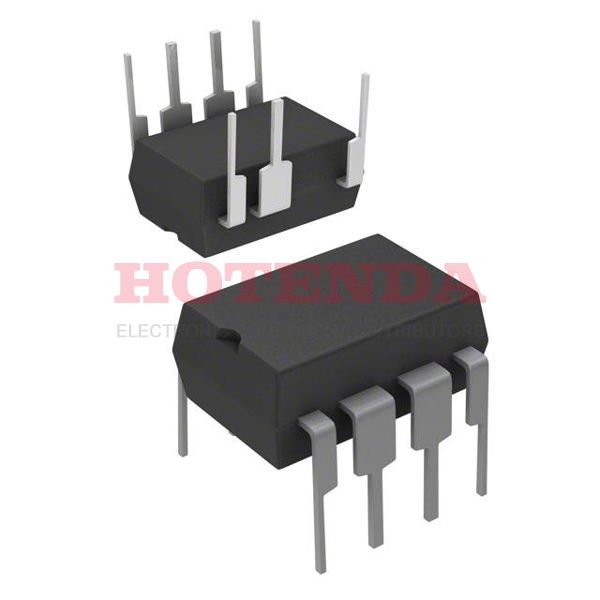

An embedded ac to dc converter is included in 8-DIP (0.300, 7.62mm), 7 Leads package.In Tube case, the ac dc converter is available.The AC/DC converter is mounted in the way of Through Hole .To deliver its performance, the ac dc converter should be operated at a temperature of -40°C~150°C TJ .A SWITCHING REGULATOR analog integrated circuit is used in this AC DC converter.Switching frequency reaches 66kHz~132kHz Hz.In total, it has 7 terminations.Up to 8 pins are present on the ac-dc converter.It belongs to the manufacturer family of TOPSwitch?-FX .The ac to dc conversions are included in Switching Regulator or Controllers .In this AC to DC transformer, the output voltage is 12V .An amount of current of 2.4A is the maximum that can be supplied to the ac to dc inverter.This converter requires a minimum supply voltage of 85V volts.Across the converter, the maximum supply voltage is 265V .
TOP234P Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 66kHz~132kHz
TOP234P Applications
There are a lot of Power Integrations TOP234P AC DC Converters applications.
- Adapters for Handheld Electronics
- Standby Power for General Off-Line Applications
- ZigBee
- AC-DC Output Power Conversion Applications
- Home appliances
- DVD players
- Tablets
- Automotive Infotainment
- Standby power
- Air Conditioning
