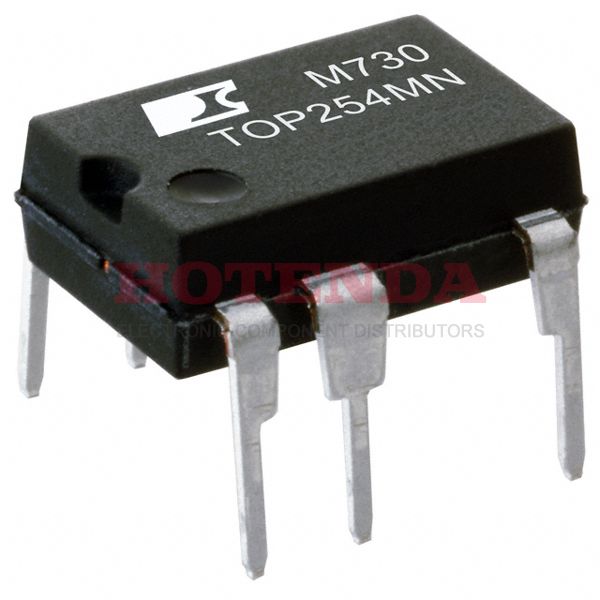

TOP254MN Overview
This ac to dc converter is included in the package 10-SDIP (0.300, 7.62mm), 9 Leads .The AC/DC power converter is available in Tube .Through Hole mounts this AC/DC converter.It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ in order to ensure its performance.Analog ICs of type ANALOG CIRCUIT are used in this AC DC converter.As a result, the switching frequency reaches 66kHz .In total, there are 9 terminations.In this ac/dc converter, there are 9 pins.It belongs to a manufacturer family of TOPSwitch?-HX .AC to DC converter is contained in Switching Regulator or Controllers .There is 2.08A output current set.As a result, its output voltage is 700V .In the AC to DC transformer of a coverter, the output power is 28W .There is -300mV minimum supply voltage requirement for this AC to DC power supply.
TOP254MN Features
Packaged with 10-SDIP (0.300, 7.62mm), 9 Leads
Switching Frequency at 66kHz
With 9 pins
Output Current at 2.08A
TOP254MN Applications
There are a lot of Power Integrations TOP254MN AC DC Converters applications.
- AC?DC USB chargers for Cameras
- USB-PD 2.0
- Portable Apparatus
- Rice Cooker
- SMPS house keeping power supplies
- ZigBee
- Automotive Clusters
- Home appliances
- USB type-c v1.2 chargers with optional VDM
- Cellular phone chargers
