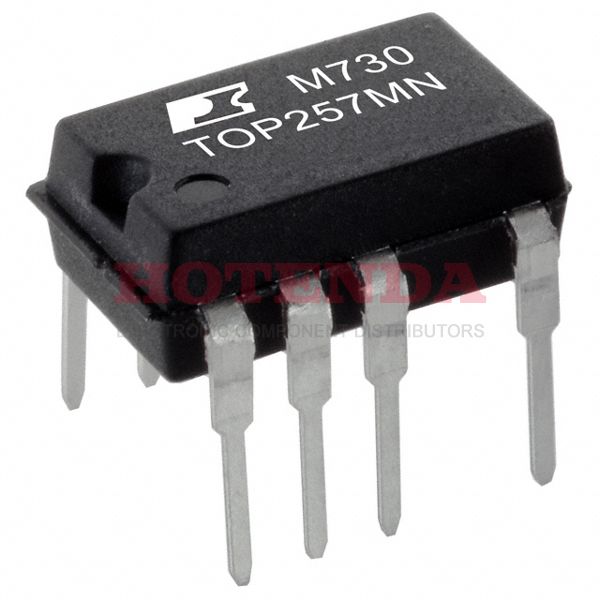

TOP257MN Overview
10-SDIP (0.300, 7.62mm), 9 Leads is the package in which the ac to dc converter is embedded.There is a AC/DC power converter of Tube available.It is mounted in the way of Through Hole .For the ac dc converter to perform properly, it should be operated at a temperature of -40°C~150°C TJ °C.In this AC DC converter, an analog integrated circuit (IC) of type ANALOG CIRCUIT is employed.As a result, it has had 9 terminations.The ac/dc converter has a total of 10 pins.The ac dc converters are suitable to mount by Through Hole .This AC to DC converter belongs to the TOPSwitch?-HX manufacturer family.The number of outputs to run is 1 .There are a ac to dc conversions included in Switching Regulator or Controllers .There is 12V output voltage from this AC/DC converter.The power AC DC is capable of high efficiency when operated at a frequency of 66kHz .You may read the REACH SVHC standard at No SVHC .The output power of a coverter generates 78W .A voltage of 85V is the minimum supply voltage across the converter.There is a maximum supply voltage of 265V across the converter.The AC to DC power converter's input voltage (AC) should be below 265V .It is capable of working with a minimum supply voltage of 36V volts.
TOP257MN Features
Packaged with 10-SDIP (0.300, 7.62mm), 9 Leads
With 10 pins
TOP257MN Applications
There are a lot of Power Integrations TOP257MN AC DC Converters applications.
- White goods
- Adapter/Charger for Cell
- Standby power supplies for IR
- LED lights
- Portable audio
- Records
- Power tools fast chargers with trickle and on/off
- Remotely-controlled appliances
- Handheld/Battery-Powered Systems
- Lighting controls
