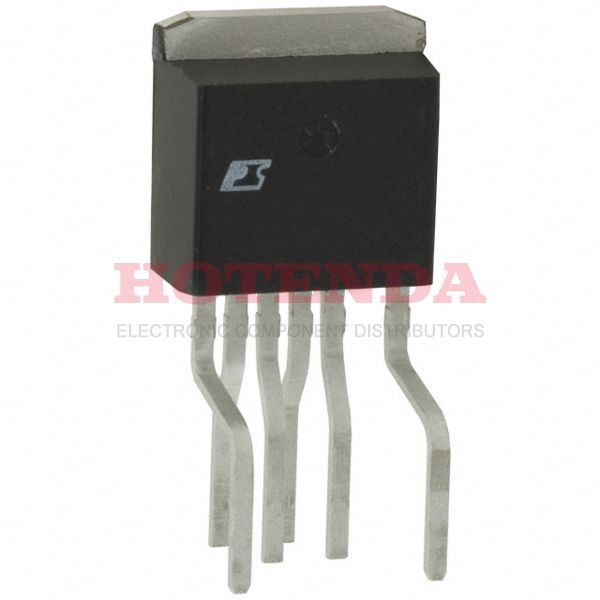

TOP249FN Overview
This ac to dc converter is included in the package TO-262-7 (Formed Leads), 6 Leads .In Tube AC/DC power converter, it is available.A AC/DC converter of this type is mounted in the way of Through Hole .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~150°C TJ °C.An analog IC of type SWITCHING REGULATOR is employed in this AC DC converter.As a result, the switching frequency reaches 66kHz~132kHz .A total of 6 terminations have been recorded.There are 3 pins on the ac-dc converter.This AC to DC converter belongs to the TOPSwitch?-GX family of manufacturers.The ac to dc conversions are contained in Switching Regulator or Controllers .It produces a voltage of 12V .It is possible to supply the ac to dc inverter with a maximum current of 8.64A .Across the converter, the minimum supply voltage is 85V .This converter can operate at a maximum supply voltage of 265V .
TOP249FN Features
Packaged with TO-262-7 (Formed Leads), 6 Leads
Switching Frequency at 66kHz~132kHz
TOP249FN Applications
There are a lot of Power Integrations TOP249FN AC DC Converters applications.
- Power adapters for monitors
- Shaver Charger
- Standby Power Supplies
- Laptops
- Standby power
- Standby and Auxiliary Power Supplies Set Top Boxes (STB)
- Battery Chargers
- Power tools
- Smartphones
- Utility meters
