VIPER53SP13TR Overview

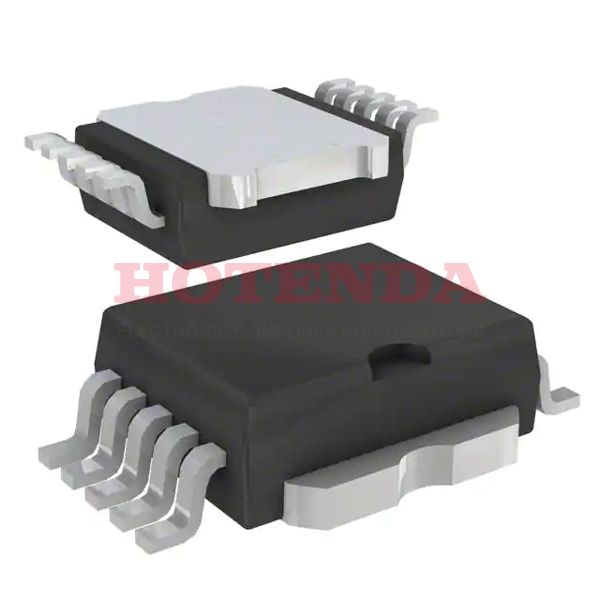

There is a ac to dc converter embedded in package PowerSO-10 Exposed Bottom Pad .In Tape & Reel (TR) AC/DC power converter, it is available.As you can see, this AC/DC converter is mounted in the way of Surface Mount .It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TC in order to ensure its performance.In this AC DC converter, the analog IC type is SWITCHING REGULATOR .The switching frequency reaches Up to 300kHz .This AC/DC converter is suitable for operation in the range of 8.4V~19V supply voltage (Vcc/Vdd).It has a total of 10 terminations.Approximately 10 pins are present on the ac/dc converter.There are a total of 10 pins on the ac-dc converter.It is suitable for mounting by Surface Mount .It is a member of VIPER? manufacturer family.Based on the VIPER53 family, you can search for similar acdc converters.There are 1 outputs to be processed.The following ac to dc conversions are contained in Switching Regulator or Controllers .Current output is set to 2.3A .A coverter produces 40W watts of output power.
VIPER53SP13TR Features
Packaged with PowerSO-10 Exposed Bottom Pad
Switching Frequency at Up to 300kHz
With 10 pins
Output Current at 2.3A
VIPER53SP13TR Applications
There are a lot of STMicroelectronics VIPER53SP13TR AC DC Converters applications.
- Battery chargers for cellular phones
- USB type-c v1.2 chargers with optional VDM
- Adapters for Handheld Electronics
- Automotive Telematics
- Home appliances
- AC?DC USB chargers for Cell Phones
- Consumer electronics
- AC?DC USB chargers for Tablets
- Adapters
- MP3
