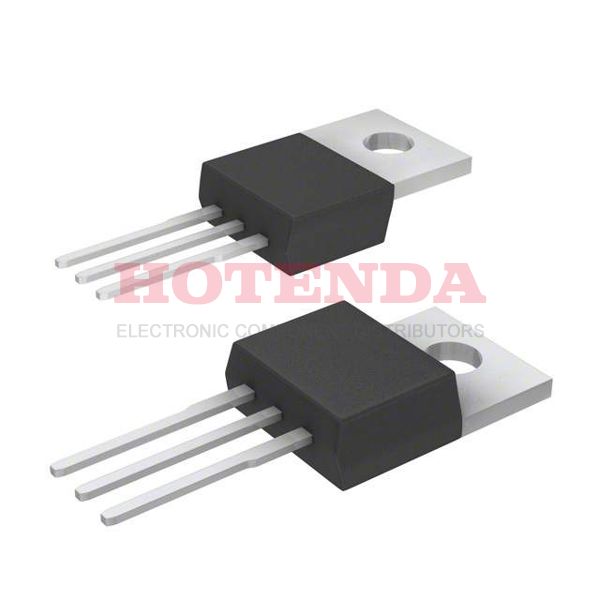

TOP226Y Overview
There is a ac to dc converter embedded in package TO-220-3 .You can get it in AC/DC power converter Tube .Through Hole is mounted in the way of this AC/DC converter.For the ac dc converter to perform properly, it should be operated at a temperature of -40°C~150°C TJ °C.Analog ICs of type SWITCHING REGULATOR are used in this AC DC converter.When the switching frequency reaches 100kHz , the process is complete.Total terminations are 3 .There are a total of 3 pins on the ac-dc converter.It belongs to the manufacturer family of TOPSwitch?-II .AC to DC converter is contained in Switching Regulator or Controllers .The output voltage of the AC/DC converter is 5.7V .It is possible to supply the ac to dc inverter with a maximum current of 2.75A .A minimum voltage of 85V is required across the converter.265V is the maximum supply voltage across the converter.
TOP226Y Features
Packaged with TO-220-3
Switching Frequency at 100kHz
TOP226Y Applications
There are a lot of Power Integrations TOP226Y AC DC Converters applications.
- Records
- Standby Power Supplies
- Universal Off-Line Power Supplies
- AC--DC Adapter
- Smartphones
- AC?DC USB chargers for Tablets
- Portable audio
- AC/DC Adaptors/Chargers for Cell Phones
- LED Driver
- Home appliances
