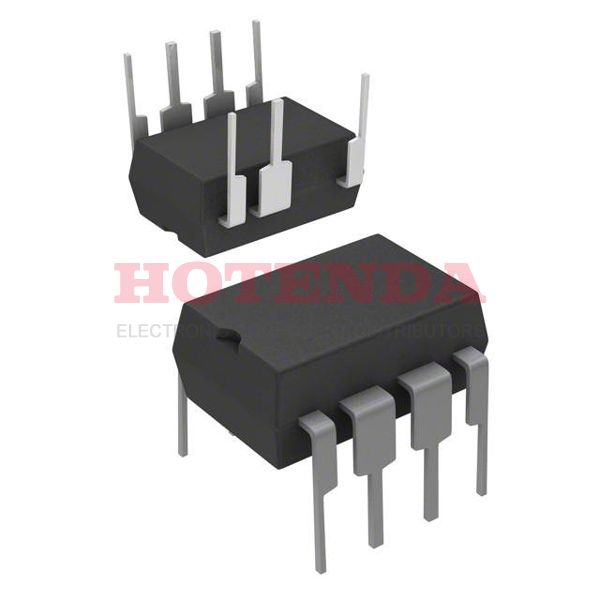

LNK305P Overview
8-DIP (0.300, 7.62mm), 7 Leads is the package in which the ac to dc converter is embedded.In Bulk case, the ac dc converter is available.There is a AC/DC converter mounted in the way of Through Hole .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~150°C TJ °C.An analog IC of type SWITCHING REGULATOR is employed in this AC DC converter.As a result, the switching frequency reaches 66kHz .In total, it has 8 terminations.A total of 8 pins are present on the ac-dc converter.A member of the LinkSwitch?-TN manufacturer family, it has the following characteristics.Currently, the maximum current that the ac to dc inverter can take is 0.8A .Also, REQUIRES AN AC SUPPLY OF 85 TO 256V can be found using this ACDC converter.
LNK305P Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 66kHz
LNK305P Applications
There are a lot of Power Integrations LNK305P AC DC Converters applications.
- White goods
- Auxiliary Power Supply
- Auxiliary Power Supplies
- Adapters for Handheld Electronics
- Laptops and personal digital assistants
- AC--DC Adapter
- MPS parts
- AC?DC USB chargers for Tablets
- Wireless System
- Remotely-controlled appliances
