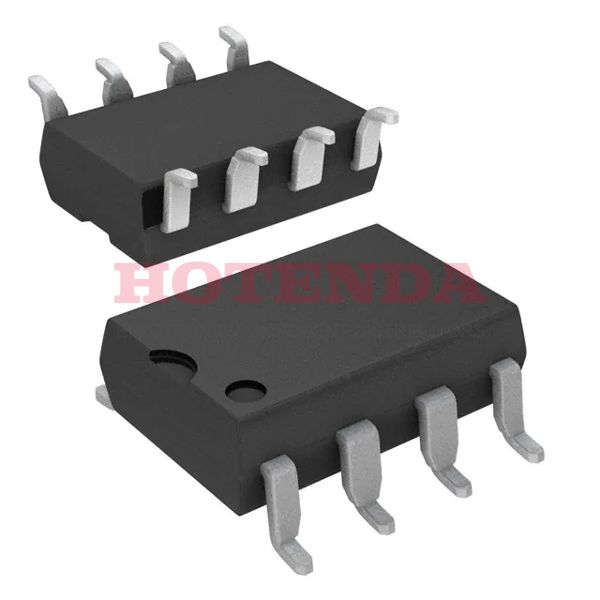

TOP224G Overview
In the 8-SMD, Gull Wing package, the ac to dc converter is embedded.The ac dc converter is available in Tube case.As you can see, this AC/DC converter is mounted in the way of Surface Mount .Ideally, the ac dc converter should be operated at a temperature of -40°C~150°C TJ degrees Celsius.This AC DC converter employs SWITCHING REGULATOR analog IC type.Switching frequency reaches 100kHz Hz.There are a total of 8 terminations in it.The ac/dc converter has 8 pins.There are 8 pins in the ac-dc converter.It belongs to a manufacturer family of TOPSwitch?-II .The ac to dc conversions are contained in Switching Regulator or Controllers .There is 5.7V output voltage from this AC/DC converter.It is possible to supply the ac to dc inverter with a maximum current of 1.65A .A minimum voltage of 85V is required across the converter.Across the converter, the maximum supply voltage is 265V .
TOP224G Features
Packaged with 8-SMD, Gull Wing
Switching Frequency at 100kHz
With 8 pins
TOP224G Applications
There are a lot of Power Integrations TOP224G AC DC Converters applications.
- Adapters
- Battery chargers for cellular phones
- USB type-c v1.2 chargers with optional VDM
- Low power ac?dc Adapters for Chargers
- Off--line Battery Charger
- DVD players
- Wireless System
- SMPS house keeping power supplies
- Records
- Adapter/Charger for Cell
