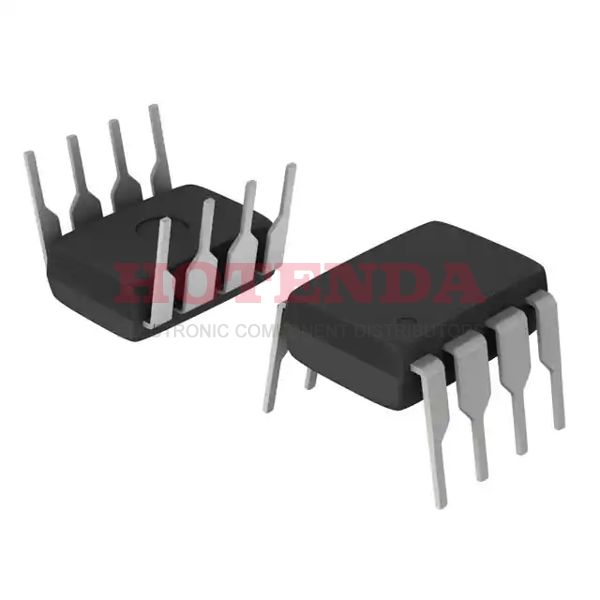

TOP209P Overview
This ac to dc converter is included in the package 8-DIP (0.300, 7.62mm) .Tube case is available for the ac dc converter.There is a mounting point for this AC/DC converter in the way of Through Hole .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~150°C TJ °C.In this AC DC converter, an analog integrated circuit (IC) of type SWITCHING REGULATOR is employed.The switching frequency reaches 70kHz .In total, it has 8 terminations.It contains 8 pins.The pins of the ac-dc converter count up to 8 .It belongs to a manufacturer family of TOPSwitch? .There is 5.8V voltage output from it.Currently, the maximum current that the ac to dc inverter can take is 0.1A .Supply voltage across the converter must be 85V at all times.There is a maximum voltage supply across the converter of 265V volts.
TOP209P Features
Packaged with 8-DIP (0.300, 7.62mm)
Switching Frequency at 70kHz
With 8 pins
TOP209P Applications
There are a lot of Power Integrations TOP209P AC DC Converters applications.
- Utility meters
- Automotive Infotainment
- Battery Chargers
- Portable audio
- Wall switches
- Set-top boxes
- USB type-c v1.2 chargers with optional VDM
- White goods
- Adapter/Charger for Cordless Phones
- Power tools fast chargers with trickle and on/off
