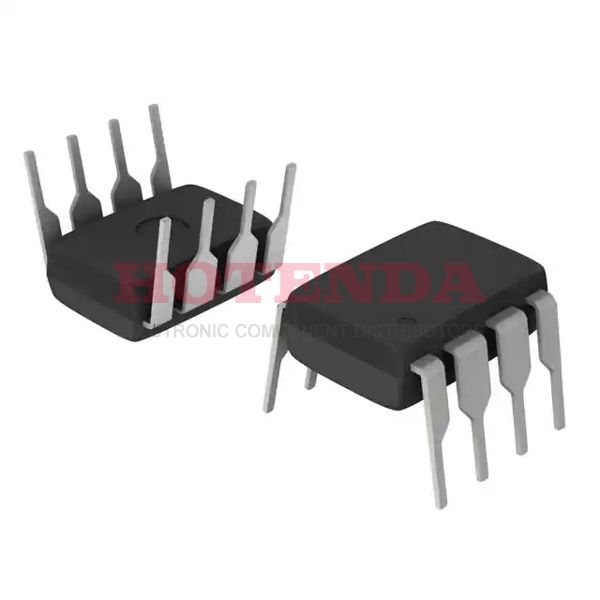

TEA1507P/N1,112 Overview
The ac to dc converter is embedded in 8-DIP (0.300, 7.62mm) package.The AC/DC power converter type is Tube .Through Hole mounts this AC/DC converter.It is necessary to operate the ac dc converter at a temperature of -20°C~145°C TJ °C in order for it to perform properly.The AC DC converter utilizes a type SWITCHING CONTROLLER analog IC.There is 6.5kHz~175kHz switching frequency.This AC/DC converter is designed for use within the range of 8.7V~20V supply voltage (Vcc/Vdd).A total of 8 terminations have been recorded.A total of 8 pins are present on the ac-dc converter.Currently, it is acdc converter of the manufacturer family of GreenChip? II .It is possible to search for similar acdc converters by using the TEA1507 family.In theory, the maximum current that can be supplied to the ac to dc inverter is 2A .
TEA1507P/N1,112 Features
Packaged with 8-DIP (0.300, 7.62mm)
Switching Frequency at 6.5kHz~175kHz
TEA1507P/N1,112 Applications
There are a lot of NXP USA Inc. TEA1507P/N1,112 AC DC Converters applications.
- Power Adaptors
- White goods
- Standby Power Supplies
- Battery chargers for cordless
- Chargers for cell/cordless phones
- Consumer electronics
- Standby and Auxiliary Power Supplies Set Top Boxes (STB)
- Laptops and personal digital assistants
- Auxiliary Power Supply
- Battery Chargers
