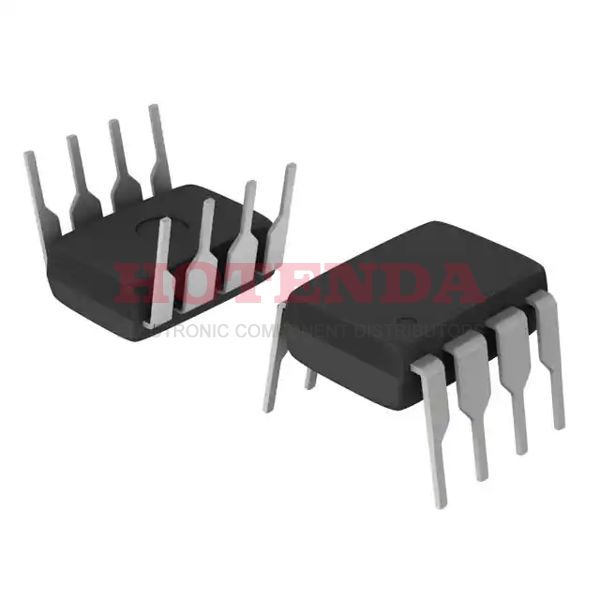

TNY256PN Overview
An embedded ac to dc converter is included in 8-DIP (0.300, 7.62mm) package.The AC/DC power converter is available in Tube .Through Hole is mounted in the way of this AC/DC converter.It is necessary to operate the ac dc converter at a temperature of -40°C~150°C TJ °C in order for it to perform properly.There is 130kHz switching frequency.On this ac/dc converter, there are 8 pins.It belongs to the manufacturer family of TinySwitch? Plus .Its output voltage amounts to 5.8V .A voltage of 85V is the minimum supply voltage across the converter.It is possible to supply 265V voltage across the converter.It is provided with 8-DIP packages.By setting the maximum value to 150°C , stability is ensured.A minimum working temperature of -40°C must be maintained for this isolated switch.
TNY256PN Features
Packaged with 8-DIP (0.300, 7.62mm)
Switching Frequency at 130kHz
With 8 pins
TNY256PN Applications
There are a lot of Power Integrations TNY256PN AC DC Converters applications.
- Standby and Auxiliary Power Supplies
- Power tools fast chargers with trickle and on/off
- Home Appliance Applications
- LED lights
- Automotive Telematics
- Low-Voltage I/O System Power
- Automotive Infotainment
- Adapter for ADSL
- AC/DC Adaptors/Chargers for E-books
- Low power ac?dc Adapters for Chargers
