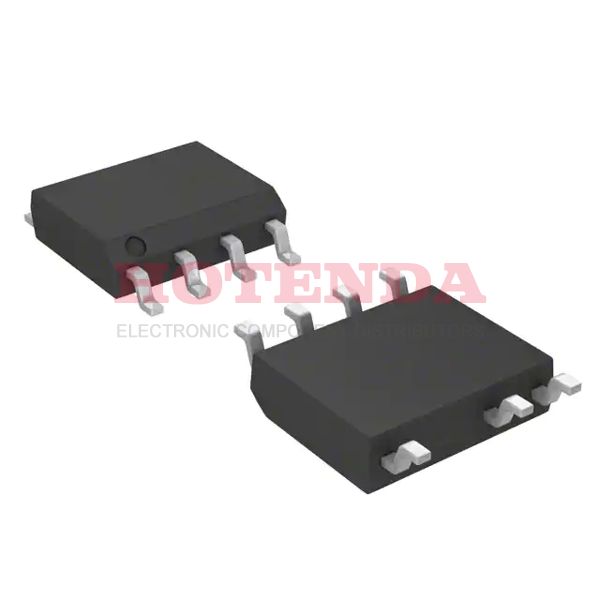

NCP1219BD100R2G Overview
This ac to dc converter is embedded in package 8-SOIC (0.154, 3.90mm Width), 7 Leads .The ac dc converter is available in Tape & Reel (TR) case.There is a mounting point for this AC/DC converter in the way of Surface Mount .This ac dc converter should be operated at a temperature of -40°C~150°C TJ °C so that it can deliver its performance.SWITCHING REGULATOR analog ICs are employed in this AC DC converter.The switching frequency reaches 100kHz .This AC/DC converter is designed for use within the range of 9.9V~20V supply voltage (Vcc/Vdd).There are a total of 7 terminations.In this ac/dc converter, there are 7 pins.Up to 7 pins are present on the ac-dc converter.Similar acdc converters can be found using the NCP1219 family.The ac to dc conversions are contained in Switching Regulator or Controllers .There is 800mA output current set.Its output voltage is20V .
NCP1219BD100R2G Features
Packaged with 8-SOIC (0.154, 3.90mm Width), 7 Leads
Switching Frequency at 100kHz
With 7 pins
Output Current at 800mA
NCP1219BD100R2G Applications
There are a lot of ON Semiconductor NCP1219BD100R2G AC DC Converters applications.
- ZigBee
- AC--DC Adapter
- AC/DC Adaptors/Chargers for Cordless Phone
- AC?DC USB chargers for Cameras
- Humidifier
- Power adapters for network devices
- Laptops and personal digital assistants
- Set-top boxes
- Standby Power Supply
- Remotely-controlled appliances
