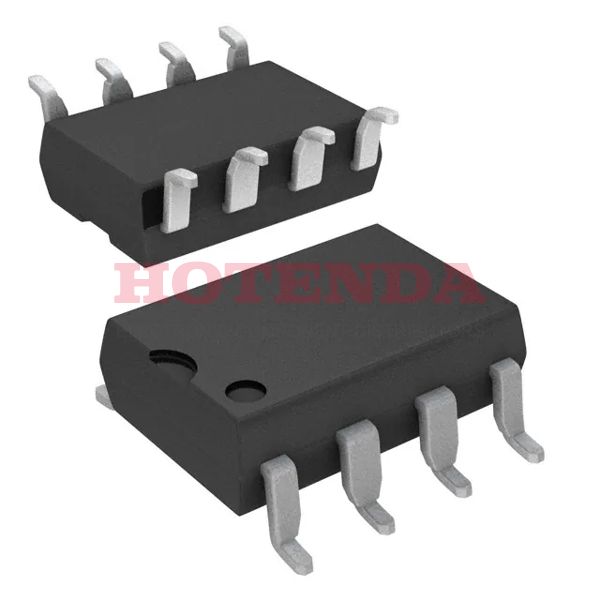

TNY253G Overview
In the 8-SMD, Gull Wing package, the ac to dc converter is embedded.The ac dc converter is available in Tube case.The AC/DC converter is mounted in the way of Surface Mount .It is necessary to operate the ac dc converter at a temperature of -40°C~150°C TJ °C in order for it to perform properly.In this AC DC converter, the analog IC type is SWITCHING REGULATOR .When the switching frequency reaches 44kHz , the circuit is closed.In total, it has 8 terminations.The ac/dc converter has 8 pins.The pins of the ac-dc converter count up to 8 .It is a member of TinySwitch? manufacturer family.The output voltage of the AC/DC converter is 5.8V .In theory, the maximum current that can be supplied to the ac to dc inverter is 0.4A .A voltage of 85V is the minimum supply voltage across the converter.There is a maximum supply voltage of 265V across the converter.
TNY253G Features
Packaged with 8-SMD, Gull Wing
Switching Frequency at 44kHz
With 8 pins
TNY253G Applications
There are a lot of Power Integrations TNY253G AC DC Converters applications.
- Standby Power for General Off-Line Applications
- IoT Applications
- Battery Chargers
- Appliances
- AC/DC Adaptors/Chargers for E-books
- Power adapters for network devices
- Linear Adapter Replacements
- Standby and Auxiliary Power Supplies
- Industrial controls
- Chargers for cell/cordless phones
