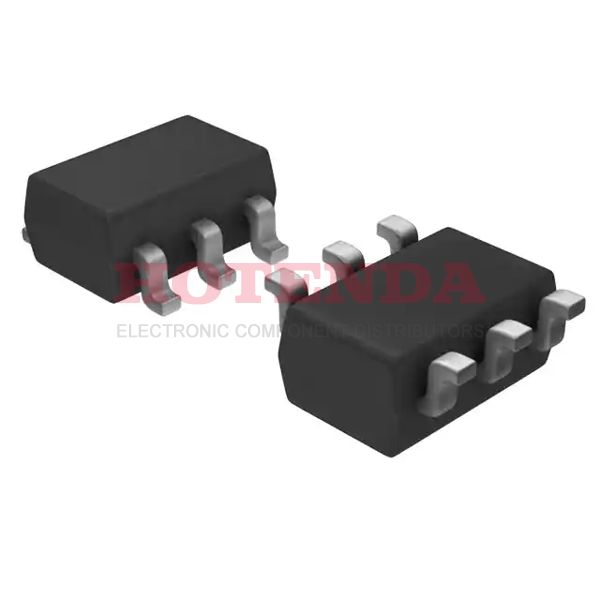

UCC28702DBVR Overview
In the SOT-23-6 package, the ac to dc converter is embedded.It is available in Tape & Reel (TR) AC/DC power converter.In this case, the AC/DC converter is mounted in the way of Surface Mount .The ac dc converter should be operated at a temperature of -20°C~125°C TJ °C to deliver its optimal performance.The AC DC converter utilizes a type SWITCHING CONTROLLER analog IC.As a result, the switching frequency reaches 1kHz~130kHz .The AC/DC converter is capable of being used when the supply voltage is 9V~35V (Vcc/Vdd).As a result, it has a total of 6 terminations.There are 6 pins on the ac/dc converter.The UCC28702 family can be used to search for similar acdc converters.A total of 1 outputs are available for processing.The following ac to dc conversions are contained in Switching Regulator or Controllers .We have set the output current to 25mA .It produces a voltage of 14V .With the aid of a unique technique, it is possible to ensure that the input voltage will be at the maximum value of 35V .It is important to keep this AC to DC converter set to 25V .
UCC28702DBVR Features
Packaged with SOT-23-6
Switching Frequency at 1kHz~130kHz
With 6 pins
Output Current at 25mA
UCC28702DBVR Applications
There are a lot of Texas Instruments UCC28702DBVR AC DC Converters applications.
- Standby Power for General Off-Line Applications
- Standby Power Supplies
- Industrial controls
- Humidifier
- Laptops and personal digital assistants
- Adapter/Charger for Cell
- Tablets
- AC--DC Adapter
- Standby power supplies for TV
- Auxiliary Power Supplies
