LNK4002S-TL Overview

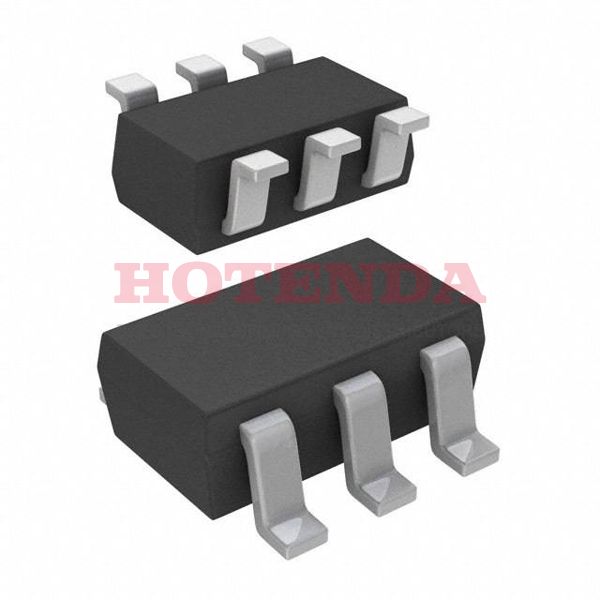

In the SOT-23-6 package, the ac to dc converter is embedded.The ac dc converter is available in Tape & Reel (TR) case.In this case, the AC/DC converter is mounted in the way of Surface Mount .For the ac dc converter to perform at its best, it should be operated at a temperature of -25°C~125°C TJ °C.In this AC DC converter, the analog IC type is SWITCHING REGULATOR .65kHz is the switching frequency.This AC/DC converter is designed for use within the range of 5V~16.5V supply voltage (Vcc/Vdd).There are no problem mounting the ac dc converters by Surface Mount .Currently, it is acdc converter of the manufacturer family of LinkSwitch?-4 .Running 1 outputs is available.AC to DC converter is set to 2A for the output current.As a result, its output voltage is 5V .In the AC to DC transformer of a coverter, the output power generated is 6.5W .Across the converter, the minimum supply voltage is 85V .Across the converter, the maximum supply voltage is 265V .
LNK4002S-TL Features
Packaged with SOT-23-6
Switching Frequency at 65kHz
Output Current at 2A
LNK4002S-TL Applications
There are a lot of Power Integrations LNK4002S-TL AC DC Converters applications.
- Industrial controls
- Standby Power Supply
- Handheld/Battery-Powered Systems
- ZigBee
- Rice Cooker
- AC-DC Output Power Conversion Applications
- Adapters for Handheld Electronics
- Wall switches
- LED Driver
- Cellular phone chargers
