FSQ510 Overview

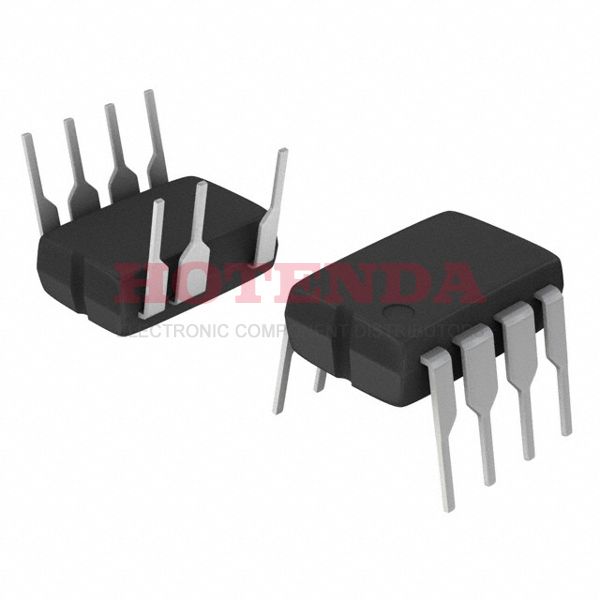

In the 8-DIP (0.300, 7.62mm), 7 Leads package, the ac to dc converter is embedded.The AC/DC power converter is available in Tube .Through Hole mounts this AC/DC converter.It is necessary to operate the ac dc converter at a temperature of -40°C~140°C TJ °C in order for it to perform properly.Analog ICs of type SWITCHING CONTROLLER are used in this AC DC converter.The switching frequency reaches 94.3kHz~132kHz .This AC/DC converter is designed for use within the range of 6.7V~20V supply voltage (Vcc/Vdd).It has a total of 7 terminations.The ac/dc converter has 7 pins.Suitable mounting is provided by Through Hole .The AC to DC converter belongs to the manufacturer family of FPS? .Search similar acdc converters based on FSQ510 family members.A total of 1 outputs need to be run.Switching Regulator or Controllers contains the ac to dc conversions.There is 280mA output current set.Its output voltage amounts to 700V .You may read the REACH SVHC standard at No SVHC .It is assumed that a coverter generates 9W as its output power.The maximum supply current is 1mA .The resistance of this power AC DC can be determined to be 28Ohm .AC to DC power converters with a max output power of 6W may be used.
FSQ510 Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 94.3kHz~132kHz
With 7 pins
Output Current at 280mA
Resistance : 28Ohm
FSQ510 Applications
There are a lot of ON Semiconductor FSQ510 AC DC Converters applications.
- Adapters for Handheld Electronics
- DVD players
- Power adapters for network devices
- Battery chargers for smart phones
- Laptops and personal digital assistants
- IoT Applications
- LED lights
- Switching AC-DC Adapter
- Standby Power Supplies
- Air conditioners
