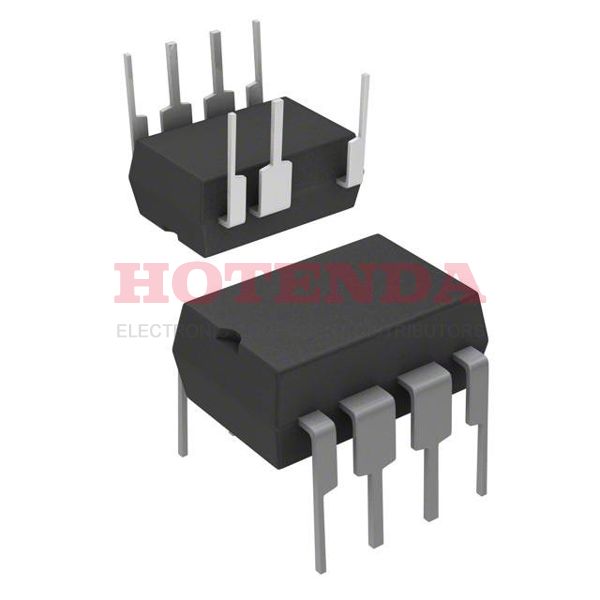

LNK306P Overview
The ac to dc converter is embedded in 8-DIP (0.300, 7.62mm), 7 Leads package.It is available in Bulk AC/DC power converter.There is a mounting point for this AC/DC converter in the way of Through Hole .It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ in order to ensure its performance.The AC DC converter utilizes a type SWITCHING REGULATOR analog IC.As soon as the switching frequency reaches 66kHz , the circuit is closed.In total, there are 8 terminations.There are 8 pins in total.Currently, it is acdc converter of the manufacturer family of LinkSwitch?-TN .Currently, the maximum current that the ac to dc inverter can take is 1.4A .It is also possible to detect REQUIRES AN AC SUPPLY OF 85 TO 256V when utilizing this ACDC converter.
LNK306P Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 66kHz
LNK306P Applications
There are a lot of Power Integrations LNK306P AC DC Converters applications.
- Appliances
- Low power ac?dc Adapters for Chargers
- Rice Cooker
- Universal Off-Line Power Supplies
- Cleaners
- Power tools fast chargers with trickle and on/off
- Battery chargers for smart phones
- RCC SMPS
- Battery chargers for cellular phones
- Z-Wave
