LNK304P Overview

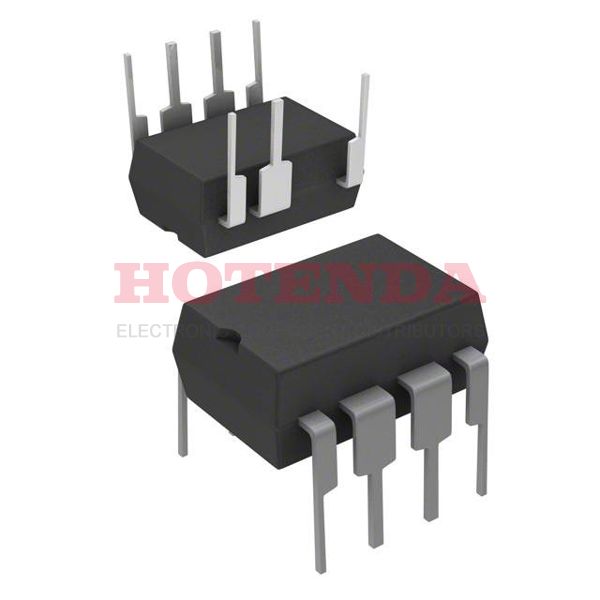

The ac to dc converter is embedded in 8-DIP (0.300, 7.62mm), 7 Leads package.In Bulk case, the ac dc converter is available.This AC/DC converter is mounted in the way of Through Hole .The ac dc converter should be operated at a temperature of -40°C~150°C TJ °C to deliver its optimal performance.The AC DC converter utilizes a type SWITCHING REGULATOR analog IC.As a result, the switching frequency reaches 66kHz .There are a total of 8 terminations in it.The pins of the ac-dc converter total to 8 .It belongs to a manufacturer family of LinkSwitch?-TN .Ac to dc inverters can be powered by up to 0.4A current.It is also possible to determine REQUIRES AN AC SUPPLY OF 85 TO 256V using this ACDC converter.
LNK304P Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 66kHz
LNK304P Applications
There are a lot of Power Integrations LNK304P AC DC Converters applications.
- Power tools fast chargers with trickle and on/off
- SMPS house keeping power supplies
- Power adapters for network devices
- Replaces linear transformers
- MP3
- Cellular phone chargers
- AC/DC Adaptors/Chargers for PDAs
- Universal input AC/DC adapters (15W - 45W)
- Laptops and personal digital assistants
- Utility meters
