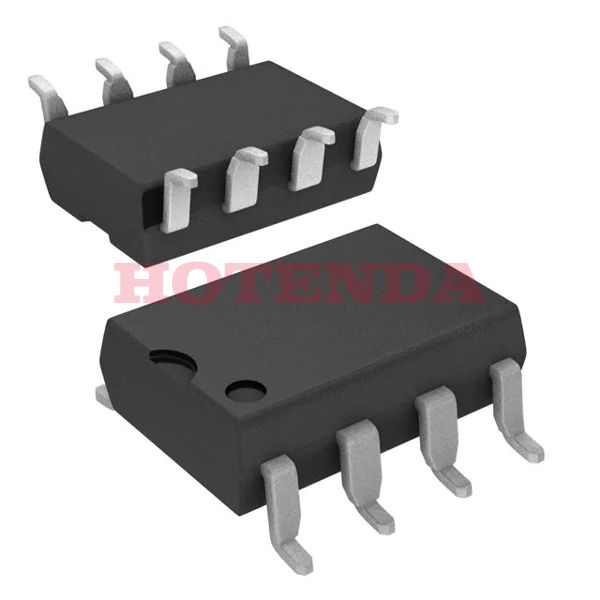

TNY253GN Overview
An embedded ac to dc converter is included in 8-SMD, Gull Wing package.In Tube case, the ac dc converter is available.As you can see, this AC/DC converter is mounted in the way of Surface Mount .It is necessary to operate the ac dc converter at a temperature of -40°C~150°C TJ °C in order for it to perform properly.SWITCHING REGULATOR analog ICs are employed in this AC DC converter.44kHz is the switching frequency.Total terminations are 8 .The ac/dc converter has a total of 8 pins.A total of 8 pins are present on the ac-dc converter.It are possible to mount thare ac dc converters by Surface Mount .This AC to DC converter belongs to the TinySwitch? manufacturer family.The number of outputs to run is 1 .There is 165mA output current set.Its output voltage is5.8V .The output power of a coverter generates 2W .There should be no less than 85V voltage across the converter.265V is the maximum supply voltage across the converter.
TNY253GN Features
Packaged with 8-SMD, Gull Wing
Switching Frequency at 44kHz
With 8 pins
Output Current at 165mA
TNY253GN Applications
There are a lot of Power Integrations TNY253GN AC DC Converters applications.
- Auxiliary Power Supplies
- Lighting controls
- Switching AC-DC Charger
- Home appliances
- IoT Applications
- Linear Adapter Replacements
- Laptops and personal digital assistants
- Consumer electronics
- AC/DC Adaptors/Chargers for PDAs
- Power Adaptors
