Name: 5442170
Brand: Phoenix Contact
SKU: 5442170
Price: 1.14000 USD
Availability: InStock

new-10%

5442170

Manufacturer part number:5442170

Manufacturer:Phoenix Contact

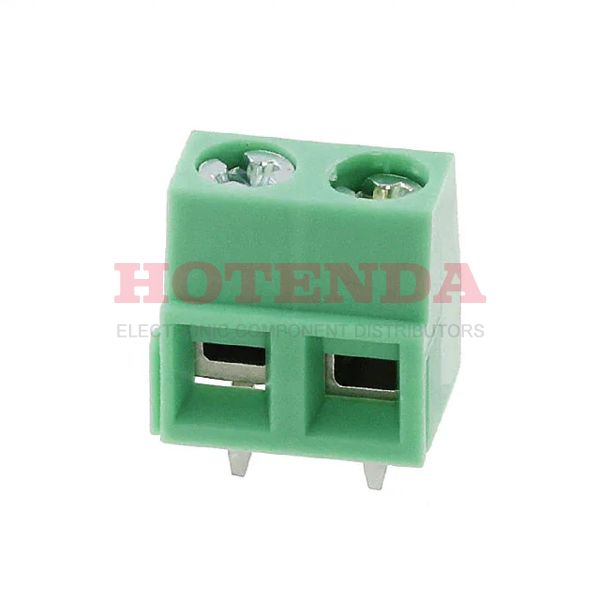

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw 1 Levels 14-30 AWG COMBICON BC

Case Package:SOT-23

Datasheet:5442170 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON BC
Published	2013
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Color	Green
Voltage - Rated	400V
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	18.1mm
Reach Compliance Code	not_compliant
Current Rating	13.5A
Wire Gauge	14-30 AWG
Voltage	300V
Max Supply Voltage	400V
Max Current Rating	13.5A
Number of Levels	1
Current	10A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	26 AWG
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Mating Orientation	Horizontal with Board
Wire Termination	Screw
Screw Thread	M3
Number of Positions Per Level	2
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

5442170 Product Details

5442170 Overview

There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the COMBICON BC Series.Through Hole is used to mount the part.It is recommended that the supply voltage of this chip not exceed 400V.
