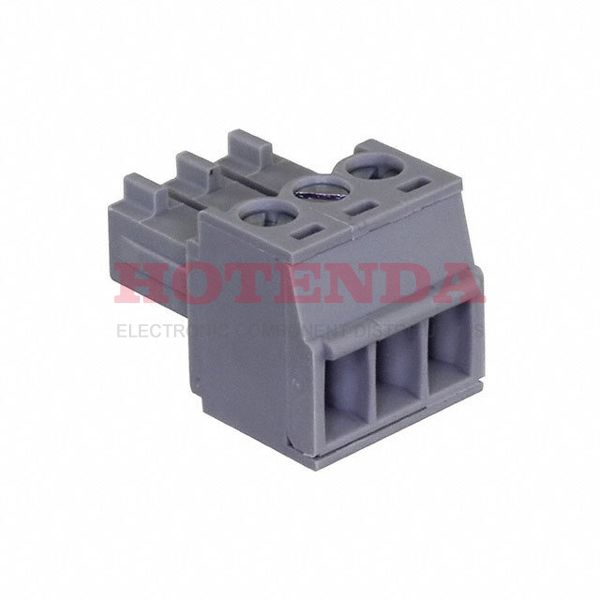

Phoenix Contact

5434557 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

5434557 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 9 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2012
Series BCP
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 3
Color Gray
Number of Rows 1
Voltage - Rated 160V
Additional FeaturePA, UL 94V-0
Pitch 0.138 3.50mm
Insulation Height 0.437 11.10mm
Current Rating8A
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Number of Ways 3
Safety Approval CUL; UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:1847 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.933339$1.933339
10$1.823905$18.23905
100$1.720665$172.0665
500$1.623269$811.6345
1000$1.531386$1531.386

5434557 Product Details

5434557 Overview


Free Hanging (In-Line) is the type of mounting for the device.An orange Bulk case is used to package the product.This product is part of the BCP Series.In addition, there are other features, such as PA, UL 94V-0, to mention just a few.There's a Free Hanging mount on the part.There are a lot of similarities between this part and other Plug, Female Sockets products.

5434557 Features


BCP series

5434557 Applications


There are a lot of Phoenix Contact 5434557 Terminal Blocks applications.

  • Electrical substations
  • Transportation
  • Military Technology
  • Automotive Electronics
  • LED municipal outdoor and street lighting
  • Refrigeration control
  • Blowers
  • Measuring & Control Technology
  • Communication
  • Medical technology
