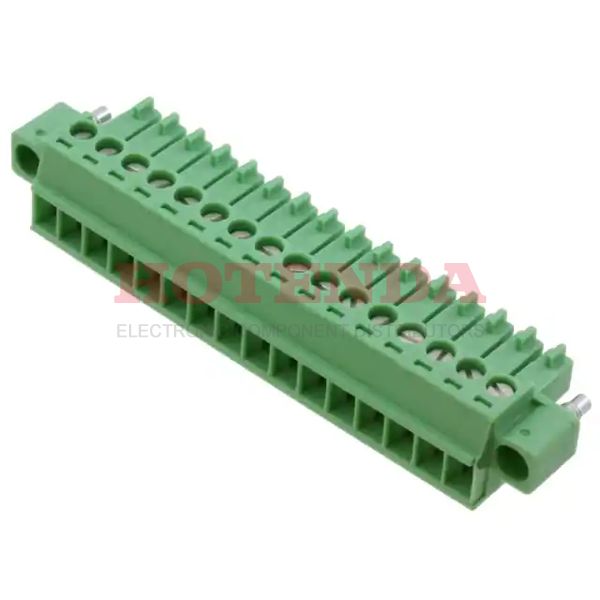

Name: 1847262
Brand: Phoenix Contact
SKU: 1847262
Price: 21.98000 USD
Availability: InStock

new

1847262

Manufacturer part number:1847262

Manufacturer:Phoenix Contact

Description:1847262 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1847262 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	98.999993g
Packaging	Bulk
Published	2011
Series	COMBICON MC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	16.1mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE, cULus
Number of Contacts	16
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	16
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Height	16.1mm
Length	61.1mm
Width	66.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1847262 Product Details

1847262 Overview

A Screw, Socket packaging is included.Mounting type Free Hanging (In-Line) is selected for the device.Bulk cases are used to package the product.COMBICON MC Series product.Then there's PA, UL 94V-0, for example.Many aspects of its Mating Flange feature increase its effectiveness.It's mounted by Cable, Free Hanging, Panel.Ensure that this chip's supply voltage does not exceed 160V volts.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.
